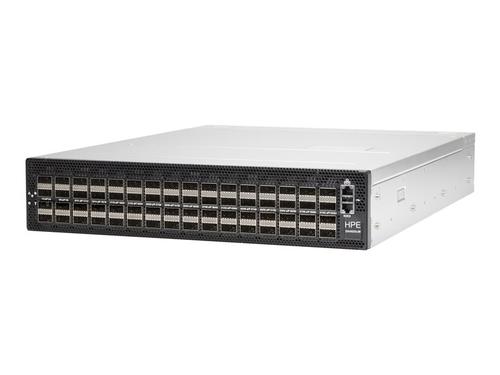

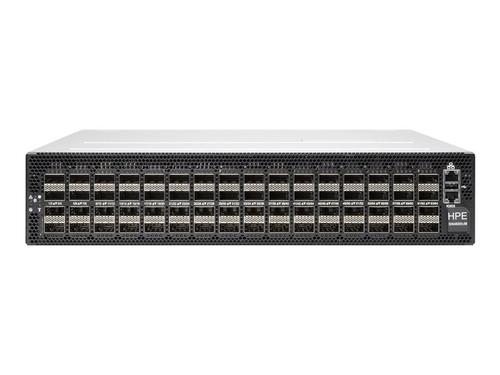

HPE SN4600cM 100GbE 64QSFP28 Switch
HPE SN4600cM 100GbE 64QSFP28 Switch - Switch - L3 - Managed - 64 x 100 Gigabit QSFP28 - back to front airflow - rack-mountable - for HPE J2000, Apollo 4200, 4200 Gen10
- Brand
- Hewlett Packard Enterprise
- Product code
- R6R24A
- SKU
- 0T02IRWFOII0Z
- EAN/GTIN
- 190017481418
- Optimized storage
- Efficient network performance
- Breakthrough economics
- Accelerated business innovation
€81764.25
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Optimized storage
Modernize your network to eliminate limitations and bottlenecks that can be caused by the addition of flash storage.
Efficient network performance
Avoid packet loss, provide predictable performance with line-rate packet delivery across all ports and all packet sizes.
Breakthrough economics
Make better use of your data center resources with the highest port density per rack unit and the industry's lowest power consumption.
Accelerated business innovation
Utilize 1/10/40Gbps Ethernet connectivity for existing workloads and enhance connectivity utilizing built-in 25/50/100Gbps capabilities to respond quickly to business needs and to stay on the leading edge of Ethernet switching technology.
| General | |
|---|---|
| Device type | Switch - 64 ports - L3 - Managed |
| Enclosure Type | Back to front airflow rack-mountable 2U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 64 x 100 Gigabit QSFP28 |
| Performance | Switching capacity:8.4 Bpps Latency:500 ns Aggregate throughput:12.8 Tbps |
| Capacity | Jumbo frame size:9216 Groups per system:64 |
| Jumbo Frame Support | Yes |
| Routing Protocol | BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP |
| Authentication method | RADIUS, TACACS+ |
| Features | Flow control, IP-routing, VLAN support, IGMP snooping, port mirroring, store and forward, IPv6 support, Weighted Random Early Detection (WRED), Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), LACP support, LLDP support, DHCP relay, Virtual Routing and Forwarding (VRF), port isolation, sFlow v5, cut-through, Precision Time Protocol (PTP), OpenFlow support, Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), Control plane protection (CoPP), 64MB packet buffer, Virtual Extensible LAN (VXLAN), Multi Chassis Link Aggregation Group (MLAG), RDMA over Converged Ethernet (RoCE) v2, Open Shortest Path First (OSPF), Ethernet Virtual Private Network (EVPN), Software Defined Networking (SDN), Network Timing Protocol (NTP), Root Guard, Loop Guard, Voice VLAN, Top-of-Rack (ToR), BPDU Filter, Encapsulated Remote SPAN (ERSPAN), Protocol Independent Multicast (PIM), BPDU Guard, Q-in-Q tunnelling, SPAN mode, Link Aggregation Group (LAG), Rapid Convergence Spanning Tree Protocol |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| RAM | 8 GB |
| Built-in Devices | 32 GB SSD |
| Expansion / Connectivity | |
| Interfaces | 64 x 100Gbit LAN QSFP28 1 x USB 2.0 Type A 1 x management RJ-45 1 x serial RJ-45 |
| Power | |

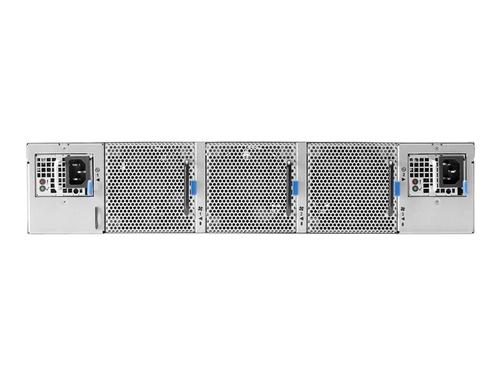

| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 482 Watt |
| 80 PLUS certification | 80 PLUS Gold |
| Features | Power-to-port airflow |
| Miscellaneous | |
| Included Accessories | Rack mount kit, cable retaining straps, 3 fan trays |
| Cables included | 1 x DB-9 to RJ-45 adapter |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 61000-4-6, RoHS, CAN/CSA C22.2 No. 60950-1-07, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, ICES-003 issue 6, EN 55032:2012 Class A, LV, CISPR 32:2015 Class A, EN 61000-4-3:2006, TR CU 020/2011, TR CU 004/2011, IEC 60950-1:2005/AMD2:2013, VCCI-CISPR 32:2016 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, KN22:2009 |
| Software / System Requirements | |
| Software included | Mellanox Onyx |
| Dimensions & Weight | |
| Width | 56.85 cm |
| Depth | 42.8 cm |
| Height | 8.8 cm |
| Weight | 14.64 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Compatibility Information | |
| Designed For | HPE J2000 Dual IOM 2x100GbE NVMe-oF SFF JBOF Storage, J2000 Dual IOM 6x100GbE NVMe-oF SFF JBOF Storage HPE Apollo 4200 Gen10 192TB Qumulo Hybrid Node, 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo, 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Qumulo Hybrid Node |
