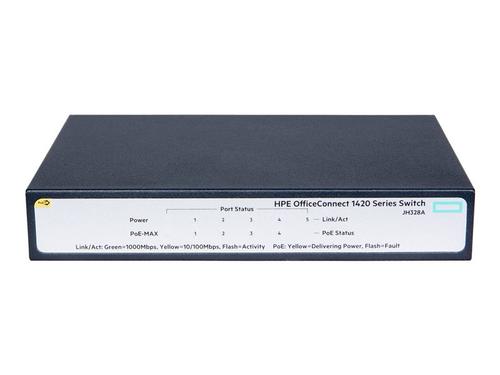

HPE 1420 5G PoE+32W Switch
HPE 1420 5G PoE+32W Switch
- Brand
- Hewlett Packard Enterprise
- Product code
- JH328A#ACC
- SKU
- SL52RP3D3XCOK
- EAN/GTIN
- 889296966272
€156.91
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Power over Ethernet (PoE) | PoE+ |
| PoE Budget | 32 W |
| Performance | Switching capacity:10 Gbps Throughput (64-byte packet size):7.4 Mpps Latency (100 Mbps):3 µs Latency (1000Base-T):2.6 µs |
| MAC Address Table Size | 2048 entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, Quality of Service (QoS), fanless, DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Flash memory | 1 MB |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T RJ-45 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Electric Current Required | 300 mA |
| Power Consumption Operational | 40 Watt |
| Miscellaneous | |
| Compliant Standards | Plug and Play, CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, UL 60950, CISPR 22, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-03 |
| Localisation | English / United Kingdom |
| Dimensions & Weight | |
| Width | 10.49 cm |
| Depth | 15.77 cm |
| Height | 2.69 cm |
| Weight | 0.5 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
