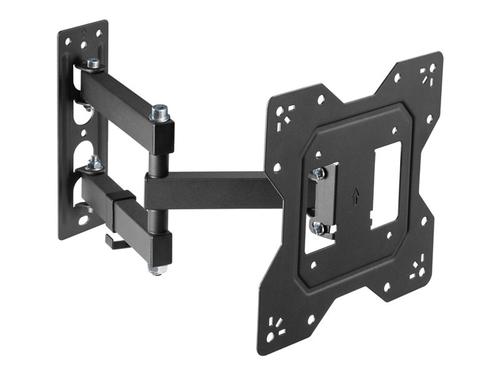

VISION Display Wall Arm Mount - LIFETIME WARRANTY - fits display 20-50" with VESA sizes up to 200 x 200 - 3 degree tilt up, 10 degree tilt down - reach from wall 56-378 mm, 2.2-14.9" - thumbscrews - SWL 25 kg, 55 lb - black
- Brand
- Vision
- Product code
- VFM-WA2X2/3
- SKU
- 11IG15TX2RXQD
- EAN/GTIN
- 6230135000000
- Double-articulated wall mount for flat panels
- Supports displays from 20" to 50"
- SWL up to 25 kg / 55 lbs
- Reach 56-378 mm /2.2"-15.0"
Description
VESA
The VESA standard is based on how far apart the mounting holes are on the back of your flat panel. Holes 200 x 200 mm apart are known as VESA 200 and will suit this mount.
Thumbscrews
Thumbscrews are used to fix the display to help speed up the installation of this mount.
Up to 50"
Most displays up to 50" use VESA 100 or 200 mounting points, so the WA2X2 fits the majority of displays up to this size. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.
Fast installation
The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with two bolts.
SWL 25 kg
This mount has a "safe working load" of 25 kg (55 lb). The single-arm design makes this mount especially flexible.
Cable management
An included clip keeps cables tidy behind the TV.
Tilt and swivel
-3° up and 10° down tilt adjustment, and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms.
| General | |
|---|---|
| Width | 23 cm |
| Height | 23 cm |
| Adjustable depth | 5.6-37.8 cm |
| Weight | 1.8 kg |
| Material | Cold-rolled steel |
| Colour | Black |
| Package Content | 4 x M6x14 screws, 4 x M8x20 screws |
| AV Furniture | |
| Type | Mounting kit |
| Mounting Components | Wall plate, articulating arm, VESA adapter |
| Design | Adjustable arm |
| Recommended Use | LCD display |
| VESA Mounting Interface | 100 x 100 mm, 200 x 200 mm, 200 x 100 mm |
| Cable management | Integrated cable management |
| Recommended Display Size | 20"-50" |
| Tilt | -3° to 10° |
| Swivel | 90° |
| Adjustments | Tilt, swivel, depth |
| Max Load Weight | 25 kg |
| Dimensions & Weight Details | |
| Shipping Dimensions (WxDxH) / Weight | 29.5 cm x 23.8 cm x 6.5 cm / 2 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
