HPE InfiniBand HDR100 MCX653105A-ECAT
P23665-H21 - 0190017437170

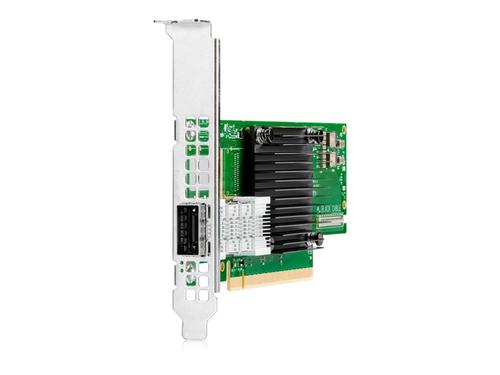

HPE InfiniBand HDR100 MCX653105A-ECAT - Network adapter - PCIe 4.0 x16 low profile - 100Gb Ethernet / 100Gb Infiniband QSFP28 x 1 - for ProLiant XL220n Gen10, XL225n Gen10, XL290n Gen10, XL645d Gen10
- Brand
- Hewlett Packard Enterprise
- Product code
- P23665-H21
- SKU
- U00U6DHRBYZYD
- EAN/GTIN
- 0190017437170
€3055.38
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Specifications
General
Device type
Network adapter
Form factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 4.0 x16
PCI Specification Revision
PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Networking
Ports
100Gb Ethernet / 100Gb Infiniband QSFP28 x 1
Connectivity technology
Wired
Data Link Protocol
Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand
Data transfer rate
100 Gbps
Network / Transport Protocol
TCP/IP, UDP/IP, iSCSI
Features
Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, VPI, QoS, InfiniBand DDR Link support, Jumbo Frames support, PXE support, LSO, LRO, RSS, UEFI support, InfiniBand FDR Link support, congestion control, AER, MSI-X, HDS, TSS, RoCE, InfiniBand EDR Link support, TPH, InfiniBand SDR Link support, XRC transport, DCT, UMR, ODP, MSI, InfiniBand HDR100 Link support
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by
Processor / Memory
Processor
1 x Mellanox ConnectX-6
Expansion / Connectivity
Interfaces
1 x 100Gb Ethernet / 100Gb Infiniband - QSFP28
Miscellaneous
Compliant Standards
CISPR 22 Class A, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1
Power
Power Consumption Operational
15.6 Watt
Software / System Requirements
OS Required
FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
5 - 95% (non-condensing)
Compatibility Information
Designed For
HPE ProLiant XL220n Gen10 Plus, XL225n Gen10 Plus 1U Node, XL290n Gen10 Plus, XL645d Gen10 Plus
