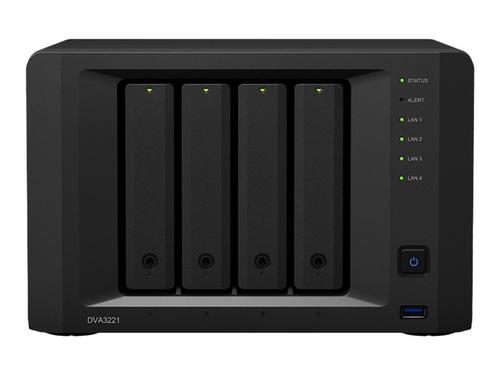

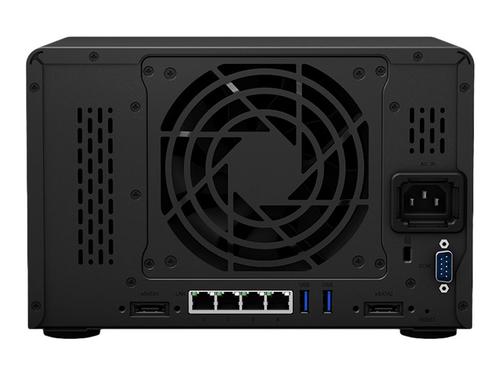

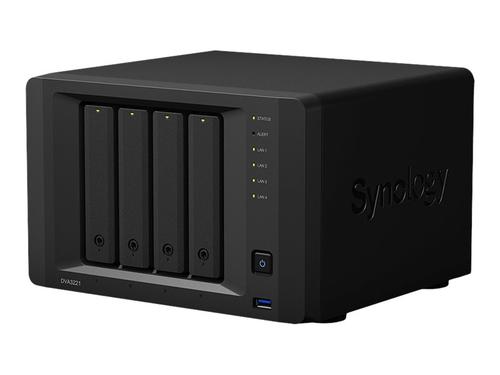

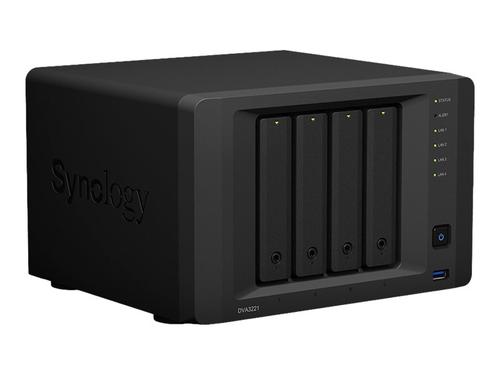

Synology Deep Learning NVR DVA3221 - NVR - 32 channels - networked
- Brand
- Synology
- Product code
- DVA3221
- SKU
- NTQP9ZI9YMR3T
- EAN/GTIN
- 4711174723942
- Actionable insights
- On-prem recording and analytics
- Real-time results
- Comprehensive VMS platform
- Action rules
- Easy to setup and operate
- Cross-platform, internet-optional
- API ready
- One-stop support
Description
Actionable insights
Video footage is transformed into actionable insights with advanced deep learning-based analytics, enhancing security without requiring additional personnel.
On-prem recording and analytics
Powered by Synology DSM, footage is kept on the device, with options to flexibly backup or archive to other devices and locations.
Real-time results
Instead of post-event analysis, DVA3221 can notify security operators immediately when incidents occur.
Comprehensive VMS platform
DVA3221 is an all-in-one NVR solution, combining video recording, analysis, and advanced video management.
Action rules
Set up security policies so that when a condition is met, corresponding actions can be triggered automatically, reducing time and effort needed for manual interventions.
Easy to setup and operate
Designed to be simple for both administrators and operators, adding and managing cameras, navigating between live feeds and recordings, and configuring permissions and backup tasks are all straightforward. Built on top of Synology DSM, graphical interfaces simplify complicated tasks, while still retaining flexibility.
Cross-platform, internet-optional
Access your surveillance system on any system through a browser, PC/Mac/Linux client, or through mobile apps, both with or without internet access.
API ready
Comprehensive documentation available to third-party developers looking to integrate their products or applications with surveillance station.
One-stop support
An integrated system means a single point of support for the hardware and software solutions, simplifying setup and maintenance efforts needed.
| General | |
|---|---|
| Device type | NVR |
| Video Channels | 32 |
| IP Cameras Supported | 32 |
| Compression Format | MJPEG, MPEG-4, G.711, G.726, H.264, AAC, PCM, AMR, H.265 |
| Package Content | DVR, accessory pack |
| Cables included | Network cable - RJ-45 - RJ-45 - 2 pcs. |
| Software Included (Y) | 8 cameras licence |
| Compliant Standards | AES, RoHS |
| Warranty | 3 years |
| Security DVR | |
| Frame Rate (Record) | 960 fps |
| Record Events | Alarm, motion detection, manual, continuous |
| Networked | Yes |
| Features | RAID 5 support, RAID 10 support, RAID 0 support, RAID 1 support, JBOD support, RAID 6 support, watermark, Pan/Tilt/Zoom support, key lock, security lock slot (cable lock sold separately), mobile phone monitoring, intrusion detection, people counting, vehicle detection, NVIDIA GeForce GTX 1650, face recognition |
| Hard drive | |
| Quantity Supported | 4 |
| Interface | Serial ATA |
| Removable | Yes |
| Video Server | |
| CPU | Intel Atom C3538 |
| RAM | 8 GB |
| Features | ONVIF compliant |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported protocols | FTP, HTTP, NTP, TCP/IP, UDP/IP, SNMP, RTSP, HTTPS, TLS, SMB, Telnet, SSH, SSL, AFP, SFTP, NFS, L2TP |
| Features | Firewall protection, VPN support, LDAP support, wake on LAN (WOL), Access Control List (ACL) support, SMS alert, e-mail notification, ONVIF support, Rsync compatible |
| System requirements | |
| Operating Systems | Windows 7 or later, Mac OS X 10.12 or later |
| Browser | Internet Explorer/Edge/Safari/Firefox/Google Chrome |
| Connections | |
| Network Port | 10/100/1000Base-T x 4 |
| Other Ports | eSATA x 2, serial, USB 3.2 x 2 |
| Power | |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Dimensions & Weight | |
| Width | 25 cm |
| Depth | 23.7 cm |
| Height | 16.6 cm |
| Weight | 4.92 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% |
