SEAGATE SYSTEMS

General

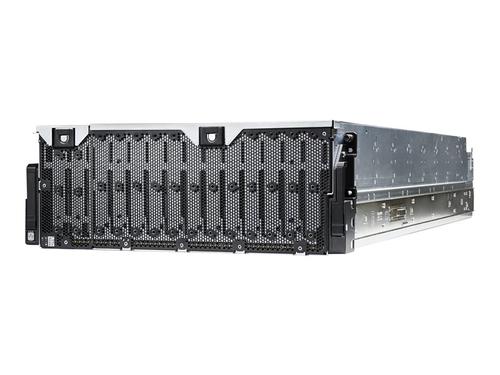

Device type Storage enclosure

Enclosure Type Rack-mountable - 4U

Chassis

Built-in Devices 2 x I/O module

Installed Devices / Modules Qty 106

Supported Devices / Modules Qty 106

Supported Drives SAS-3

Hard drive

Type HDD - hot-swap

Capacity 106 x 16 TB

Interface type SAS 12Gb/s

Spindle Speed 7200 rpm

Manufacturer Seagate

Expansion / Connectivity

Expansion Bays 106 (total) / 0 (free) x hot-swap - 3.5"

Interfaces 8 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) 4 x management - RJ-45

Miscellaneous

Features SCSI Enclosure Services (SES), hot-swappable fans, out of band management, hot-swappable controllers, hot-swappable IOM

Compliant Standards EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, KC, Directive 2009/125/EC, VCCI Class A, KN24, RCM, RoHS 2011/65/EU, BIS, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, ASHRAE Class A2, ICES-3(A)/NMB-3(A), CAN/CSA-C22.2 No. 60950-1-07

Power

Power Device Internal power supply - hot-plug

Power Redundancy Yes

Voltage Required AC 200-240 V 50/60 Hz

Power Provided 2000 Watt

Dimensions & Weight

Width 44.1 cm

Depth 113.9 cm

Height 17.64 cm

Weight 141 kg

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 35 °C

Humidity Range Operating 8 - 80% (non-condensing)
