Synology E10M20-T1
E10M20-T1 - 4711174723485

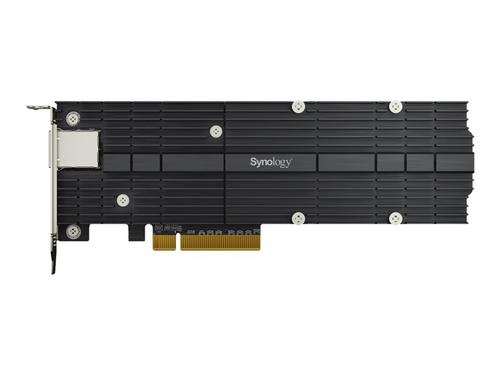

Synology E10M20-T1 - Network adapter - PCIe 3.0 x8 low profile - 10Gb Ethernet x 1 - for Synology RS820, SA3400, SA3600, Disk Station DS1618, DS1819, DS2419, RackStation RS820
- Brand
- Synology
- Product code
- E10M20-T1
- SKU
- ND5I8BDIPQ7QA
- EAN/GTIN
- 4711174723485
- Achieve Multi-Gig Ethernet fast transmission speeds
- Accelerate random I/O performance with the dual M.2 NVMe SSD slots
- Free up primary drive bays for data storage
€310.7
(Inc. VAT)
(Delivery 2-4 working days)
Specifications
General
Device type
Network adapter
Form factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0
Networking
Ports
10Gb Ethernet x 1
Connectivity technology
Wired
Cabling type
Ethernet 10GBase-T
Data Link Protocol
10 Gigabit Ethernet
Data transfer rate
10 Gbps
Network / Transport Protocol
TCP/IP, UDP/IP
Features
Flow control, auto-negotiation, full duplex mode, TCP/IP checksum offload, UDP/IP checksum offload, Jumbo Frames support (up to 9000 bytes)
Compliant Standards
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz
Expansion / Connectivity
Expansion slots
2 (total) / 2 (free) x M.2 Card
Interfaces
1 x 10GBase-T - RJ-45
Miscellaneous
Included Accessories
Low-profile bracket, full-height bracket
Dimensions & Weight
Width
1.77 cm
Depth
20.055 cm
Height
7.175 cm
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95%
Compatibility Information
Designed For
Synology RS820RP+, SA3400, SA3600 Synology Disk Station DS1618+, DS1819+, DS2419+, DS3018xs Synology RackStation RS2818RP+, RS820+, RS820RP+
