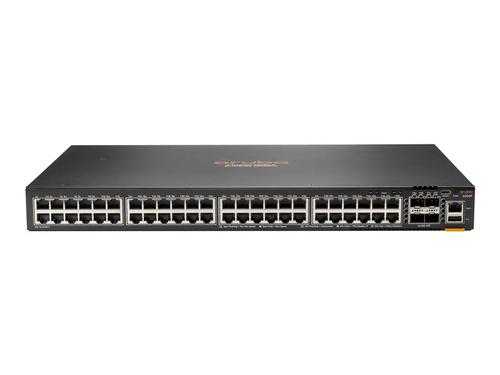

Aruba 6300F 48G 4SFP56 Sw
- Brand
- Hewlett Packard Enterprise
- Product code
- JL667A#ACC
- SKU
- ZK36ZQYAKV6N9
- EAN/GTIN
- 190017340784
- Compact 1U switches with HPE Smart Rate multi-gigabit, 60 W PoE and full-density SFP+ models
- Integrated high-speed uplinks, with intelligent monitoring and visibility via Aruba's network analysis engine
- Aruba NetEdit support for automation, configuration and verification, and one-touch deployment via the Aruba CX mobile app
- Aruba Dynamic segmentation offers enhanced security and easy access for both users and the IoT
Description
Automation and analytics
The Aruba CX 6300 switch range offers unrivalled visibility with built-in analytics for real-time monitoring and troubleshooting to resolve problems faster. Aruba's Network Analysis Engine (NAE) automatically interrogates and analyzes events that could affect network integrity. Advanced telemetry and automation features make it easy to identify and resolve network, system, application and security issues, using Python agents and REST APIs. The Time Series Database (TSDB) stores configuration and operating status data, enabling rapid resolution of network problems.
Power and performance
The Aruba CX 6300 switch range uses a fully distributed architecture with Aruba Gen7 ASICs offering ultra-low latency, increased packet buffering and adaptive power consumption. All switching and routing tasks are performed at wire speed, to meet the requirements of bandwidth-hungry applications.Deploy wireless access points and IoT devices with Aruba CX 6300 models featuring high-density HPE Smart Rate multi-gigabit Ethernet technology, with 60 W of PoE at each port, for a total of 2,880 W of PoE.
Smarter segmentation
The Aruba CX 6300 switch range supports Aruba Dynamic Segmentation, which automatically applies and enforces user, device and application policies across Aruba wired and wireless infrastructures. Automated device profiling, role-based access control and Layer 7 firewall capabilities deliver enhanced visibility and performance for an improved overall experience for both IT and end users. Inter-switch tunnels enable scalable support for shared architecture, with VXLAN-VRF mapping, while allowing policy enforcement via user roles.
| General | |
|---|---|
| Device type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Performance | Switching capacity:496 Gbps Throughput:369 Mpps Latency (1 Gbps):2.28 µs Latency (10 Gbps):1.46 µs Latency (25 Gbps):1.9 µs Latency (50 Gbps):3.49 µs Stacking bandwidth:200 Gbps |
| Capacity | Switched virtual interfaces (SVIs):1000 IPv4 host table capacity:32000 IPv6 host table capacity:32000 IPv4 routes (Unicast):64000 IPv6 routes (Unicast):32000 IPv4 routes (Multicast):8000 IPv6 routes (Multicast):8000 IGMP groups:8000 MLD groups:4000 IPv4 ACL entries (ingress):5000 IPv6 ACL entries (ingress):1250 MAC ACL entries (ingress):5000 IPv4 ACL entries (egress):2000 IPv6 ACL entries (egress):500 MAC ACL entries (egress):2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
| Authentication method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), LLDP support, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), Strict Priority (SP), broadcast storm protection, Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX |
| Processor | 1 x ARM Cortex-A72:1.78 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 PoE+ 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 1 x USB-C console 1 x management 1 x USB Type A |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localisation | English / United Kingdom |
| Dimensions & Weight | |
| Width | 44.2 cm |
| Depth | 32.7 cm |
| Height | 4.39 cm |
| Weight | 4.46 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
