Cisco Business 240AC - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz
- Brand
- Cisco
- Product code
- CBW240AC-E
- SKU
- F7D1OVNNJX7AW
- EAN/GTIN
- 889728275033
- Radio access point
- Wi-Fi 5
- 2.4 GHz, 5 GHz
- Weight: 0.98 KG
Product Info
The Cisco Business 240AC Access Point delivers high density MU-MIMO (4x4) wireless connectivity for small offices. Designed with simplicity, flexibility and security in mind, the Cisco Business 240AC provides superior performance and enhanced range for an optimal user experience.
Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.
Description
PERFORMANCE
Superior MU-MIMO (4x4) performance supporting up to 200 wireless devices and a maximum wireless coverage up to 3000 square feet
DEPLOYMENT

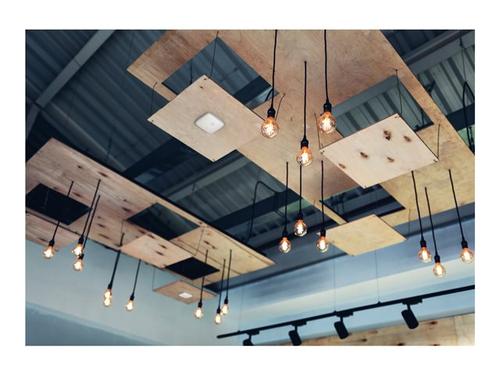

Flexible deployment wall or celling mount (brackets included). Works also with Cisco Business Power over Ethernet injector (CB-PWRINJ)
ENHANCED COVERAGE
Supports up to 25 mesh extenders while delivering a reliable user experience
SET UP IN MINUTES
Simplify management and monitor your network from Cisco Business Mobile app or web browser
ADVANCED SECURITY
Enterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration
| General | |
|---|---|
| Height | 3.8 cm |
| Width | 17.8 cm |
| Depth | 17.8 cm |
| Device Type | Radio access point |
| Weight | 430 g |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Status Indicators | Status |
| Frequency Band | 2.4 GHz, 5 GHz |
| Authentication Method | RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA2, WPA3 |
| Capacity | Wireless clients per Wi-Fi radio: 200Wireless clients: 400VLANs supported: 16 |
| Performance | Maximum data rate (5 GHz): 1733 Mbps |
| Features | VLAN support, manageable, DFS support, Mesh networking, Wi-Fi Multimedia (WMM) support, RADIUS support, ceiling mountable, 802.1x authentication, beamforming technology, Authentication, Authorization and Accounting (AAA), 4x4 MU-MIMO technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1 |
| Miscellaneous | |
| Compliant Standards | EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, CECP, EN 62209-1, SRRC, CNS 13438, EN 50385, EN 61000-3-3:2013, CISPR 24:2010, EN 62209-2, EN 60601-1-1, EN 61000-3-2:2014, LP0002, RSS-247, NRCAN, KN32, EN 55032:2012+AC:2013 Class A, TCVN 7189, EN 55032:2015, ICES-003 issue 6 Class B, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17 V3.1.1 (2017), EN 300 328 V2.1.1, EN 55035, AS/NZS 2772, EN 301 489-1 V2.1.1:2017, AS/NZS CISPR 32:2015, CISPR 32:2015, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, EN 301 893 V2.1.1, AS/NZS 4268:2017 |
| Power | |
| Power Consumption Operational | 13.2 Watt |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Flash Memory | 256 MB |
| RAM | 1 GB |
| Aerial | |
| Antenna Qty | 2 |
| Antenna | Internal |
| Directivity | Omni-directional |
