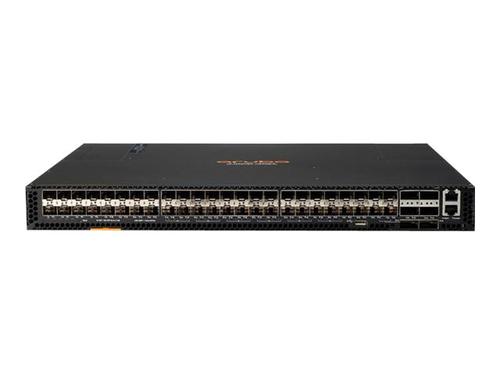

Aruba 8320 32 40G X472 5 2 Bdl
- Brand
- Hewlett Packard Enterprise
- Product code
- JL579A#ACC
- SKU
- 1G05N8T2VOV1X
- EAN/GTIN
- 190017251509
- High Performance
- High availability with redundant power and fans
- ArubaOS-CX enables automation and programmability using built-in REST APIs and Python scripts
- Intelligent monitoring and visibility with Aruba Network Analytics Engine
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
- Multi-chassis link aggregation
Description
High-density port connectivity
Comes with 48 ports of 10G to support SFP and SFP+ transceivers, and 6 ports of 40G to support QSFP+ transceivers.
Jumbo frames
Allows high-performance backups and disaster-recovery systems; provides a maximum frame size of 9K bytes.
Loopback
Supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility.
Flexible port selection
Provides a combination of fiber and copper transceiver to support 1000BASE-T and 10GBASE-T copper solution.
Packet storm protection
Protects against unknown broadcast, unknown multicast, or unicast storms with user-defined thresholds.
Redundant and load-sharing fans, and power supplies
Increases total performance and power availability while providing hitless, stateful failover.
All hot-swappable modules
Allows replacement of modules without any impact on other modules.
Separate data and control paths
Separates control from services and keeps service processing isolated; increases security and performance.
VRRP
Allows groups of two routers to dynamically back each other up to create highly available routed environments.
Unidirectional Link Detection (UDLD)
Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks.
| General | |
|---|---|
| Device type | Switch - 32 ports - L3 - Managed - with X472 5 Fans 2 Power Supply |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 32 x 40 Gigabit QSFP+ |
| Performance | Switching capacity:2.5 Tbps Forwarding performance:1.905 Mpps |
| Capacity | Virtual interfaces (VLANs) per port for 802.1q:4096 |
| MAC Address Table Size | 14K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, IGMPv2, IGMP, VRRP, IGMPv3, GRE, static IPv6 routing, ECMP |
| Remote Management Protocol | SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP |
| Encryption Algorithm | FIPS 140-2 |
| Authentication method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | VPN support, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Link Aggregation Control Protocol (LACP), redundant hot swappable fans, packet storm protection, Strict Priority (SP), Loopback, Bridge protocol data unit (BPDU), Multi-Chassis Link Aggregation (MLAG), Protocol Independent Multicast (PIM) |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX |
| Processor | 1:2 GHz |
| RAM | 16 GB |
| Flash memory | 8 MB |
| Expansion / Connectivity | |
| Interfaces | 32 x 40Gbit LAN QSFP+ 1 x serial RJ-45 1 x console (micro-USB) 1 x RJ-45 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 400 Watt |
| Voltage Required | AC 120/230 V (50/65 Hz) |
| Power Consumption Operational | 310 Watt |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 296526 hours |
| Compliant Standards | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, UL 60950-1, WEEE, AS/NZS, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 55024:2010, EN 60825-1:2007, FCC CFR47 Part 15 A, ICES-003 issue 5, Directive 2014/35/EU, EN 55032:2015, IEC 60825-1:2007 Class 1, CISPR 32:2015 Class A, CISPR 32 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| TAA Compliant | Yes |
| Localisation | English / United Kingdom |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 51.5 cm |
| Height | 4.35 cm |
| Weight | 9.7 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
