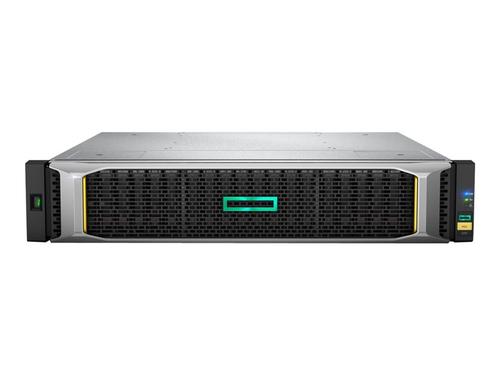

HPE Modular Smart Array 2052 SAS Dual Controller LFF Storage - Solid state / hard drive array - 1.6 TB - 12 bays (SAS-2) - SSD 800 GB x 2 - rack-mountable - 2U
- Brand
- Hewlett Packard Enterprise
- Product code
- Q1J30B
- SKU
- 98WNIDMUWBCVC
- Affordable application acceleration
- Advanced data services with no experience required
- Keep your business running with expanded data protection features
- Grow flexibly now and into the future
Description
Affordable application acceleration
The HPE MSA 2052 SAN Storage performs in excess of 200,000 IOPS delivering outstanding application acceleration for small to medium-sized businesses either locally or remotely.
Advanced data services with no experience required
The HPE MSA 2052 SAN Storage is easy to install, easy to use, easy to maintain, no storage previous expertise required. Automated tiring dynamically responds to workload changes, so you don't have to.
Keep your business running with expanded data protection features
The HPE MSA 2052 SAN Storage provides updated virtualized snapshot technology making data protection and instant recovery a snap. Remote replication with Fiber Channel (FC) and iSCSI supports an affordable disaster recovery solution.
Grow flexibly now and into the future
The HPE MSA 2052 SAN Storage delivers data-in-place upgrades protecting drive investments and reduces data migrations. Start small and scale as needed with any combination of Solid State Drives (SSDs), enterprise or midline SAS disk drives.
| General | |
|---|---|
| Device type | Solid state / hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 2 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SAS-2 |
| Storage | |
| Total Array Capacity | 1.6 TB |
| Max Supported Capacity | 960 TB |
| Maximum LUNs | 512 |
| Storage Capacity Details | Raw 960 TB |
| Processor | |
| CPU | No CPU |
| Storage Controller | |
| Type | RAID (iSCSI) |
| Installed Qty | 2 |
| Interface type | SAS 6Gb/s |
| Data transfer rate | 600 Mbps |
| Cache / Buffer Size (Max) | 8 GB |
| RAID Level | RAID 1, RAID 5, RAID 6, RAID 10 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard drive | |
| Type | SSD |
| Capacity | 2 x 800 GB |
| Features | Mixed-Use |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 10 (free) - 3.5" LFF |
| Interfaces | 4 x Ethernet 10Gb (iSCSI) / 16Gb Fibre Channel 2 x mini-USB 2.0 (management) 2 x Ethernet 1000Base-T (management) - RJ-45 2 x SAS |
| System requirements | |
| OS Required | HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, VMware ESXi 6.x |
| Miscellaneous | |
| Features | Systems Insight Manager (SIM) |
| Software included | HPE Advanced Data Services Suite, HPE 3PAR Virtual Copy, HPE MSA Remote Snap Software |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, GS, EN 61000-3-3, EN55024, CCC, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, CNS 13438 Class A, ICES-003:2004 Class A |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Consumption Operational | 374 Watt |
| Dimensions & Weight | |
| Width | 44.7 cm |
| Depth | 57.2 cm |
| Height | 8.9 cm |
| Weight | 18.4 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission | 55 dBA |
