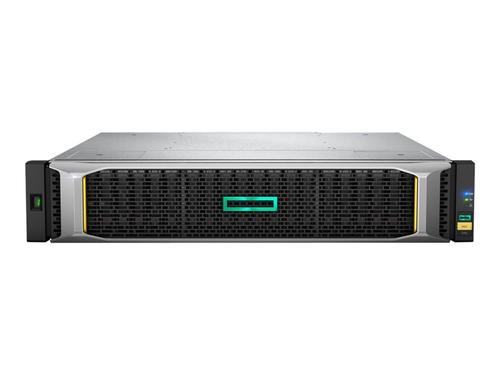

HPE Modular Smart Array 2052 SAN Dual Controller SFF Storage

General

Device type Solid state / hard drive array

Enclosure Type Rack-mountable - 2U

Chassis

Installed Devices / Modules Qty 2

Supported Devices / Modules Qty 24

Supported Drives SAS-2

Storage

Total Array Capacity 1.6 TB

Max Supported Capacity 960 TB

Maximum LUNs 512

Processor

CPU No CPU

Storage Controller

Type RAID (iSCSI)

Installed Qty 2

Interface type SAS 6Gb/s

Data transfer rate 600 Mbps

Cache / Buffer Size (Max) 8 GB

RAID Level RAID 1, RAID 5, RAID 6, RAID 10

Storage Controller (2nd)

Installed Qty 2

Hard drive

Type SSD

Capacity 2 x 800 GB

Features Mixed-Use

Expansion / Connectivity

Expansion Bays 24 (total) / 22 (free) - 2.5" SFF

Interfaces 4 x Ethernet 10Gb (iSCSI) / 16Gb Fibre Channel 2 x mini-USB 2.0 (management) 2 x Ethernet 1000Base-T (management) - RJ-45 2 x SAS

System requirements

OS Required HP-UX, SuSe Linux, Red Hat Enterprise Linux, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016

Miscellaneous

Features Systems Insight Manager (SIM)

Software included HPE Advanced Data Services Suite

Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, GS, EN 61000-3-3, EN55024, CCC, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, CNS 13438 Class A, ICES-003:2004 Class A

Environmental Standards

ENERGY STAR Certified Yes

Power

Power Device 2 x internal power supply - hot-plug

Max Supported Qty 2

Power Redundancy Yes

Power Redundancy Scheme 1+1

Voltage Required AC 120/230 V - 50/60 Hz

Power Consumption Operational 390 Watt

Dimensions & Weight

Width 44.7 cm

Depth 49.5 cm

Height 8.9 cm

Weight 18.4 kg

Manufacturer Warranty

Service & Support Limited warranty - parts - 3 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90% (non-condensing)

Sound Emission 55 dBA
