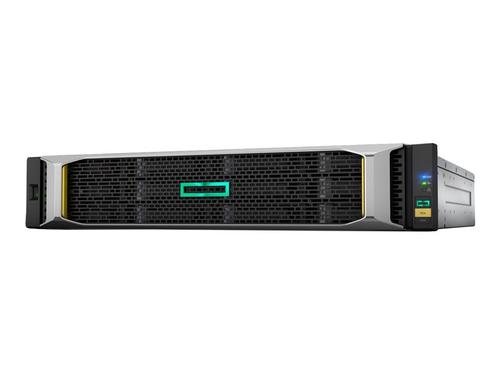

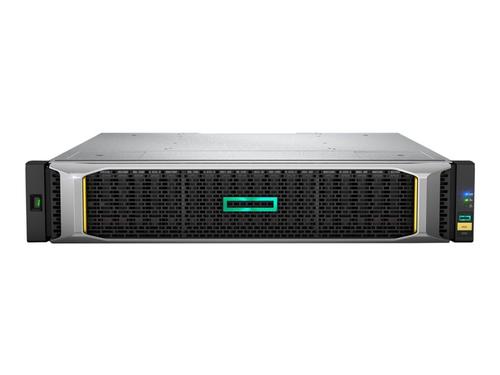

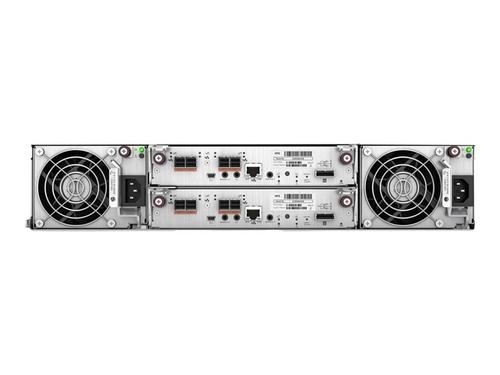

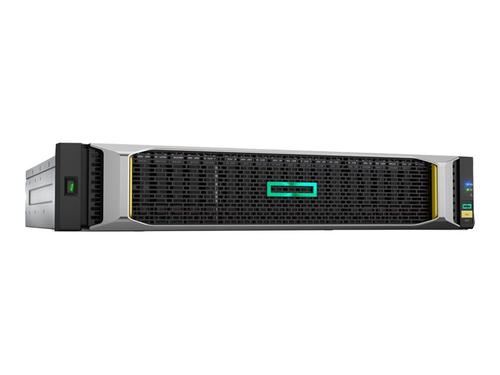

HPE Modular Smart Array 2050 SAS Dual Controller SFF Storage - Hard drive array - 24 bays (SAS-2) - SAS 12Gb/s (external) - rack-mountable - 2U
€11176.27
- Brand
- Hewlett Packard Enterprise
- Product code
- Q1J29B
- SKU
- H1H01LDU4EKW1
Sold Out
| General | |
|---|---|
| Device type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-2 |
| Storage | |
| Max Supported Capacity | 76.8 TB |
| HDD Array External Interface | SAS 12Gb/s |
| Maximum LUNs | 512 |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface type | SAS 6Gb/s |
| Data transfer rate | 600 Mbps |
| Cache / Buffer Size (Max) | 8 GB |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) - 2.5" SFF |
| Interfaces | 2 x USB (management) 2 x Ethernet 1000 (management) - RJ-45 8 x SAS 12Gb/s |
| System requirements | |
| OS Required | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Oracle Solaris, Microsoft Windows Server 2012, Citrix XenServer, Oracle Linux, Microsoft Windows Server 2016, VSI OpenVMS, Microsoft Windows Server 2019 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, CCC, IEC 60950-1, EN 60950-1, FCC Part 15.109, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, China RoHS, EN 55022 Class A, EN 55024 Class A, CNS 13438 Class A, UL 6950-1, ICES-003:2004 Class A, AS/NZS CISPR22 Class A |
| Included Accessories | Rack mounting kit, 2 x 7 m PDU cords |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Dimensions & Weight | |
| Width | 44.7 cm |
| Depth | 49.5 cm |
| Height | 8.9 cm |
| Weight | 17.6 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission | 55 dB |
