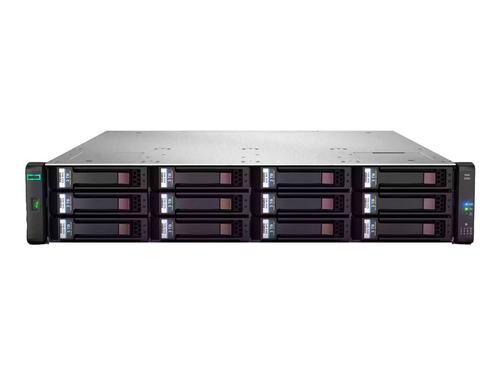

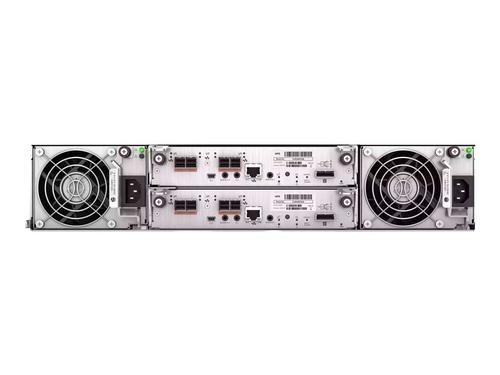

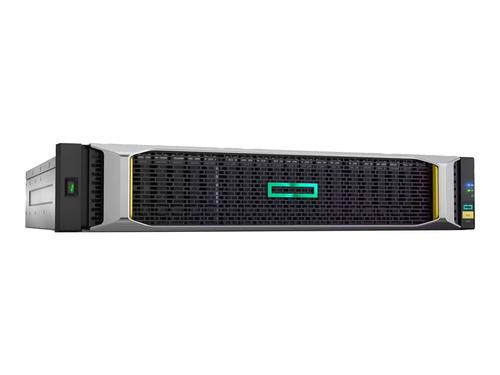

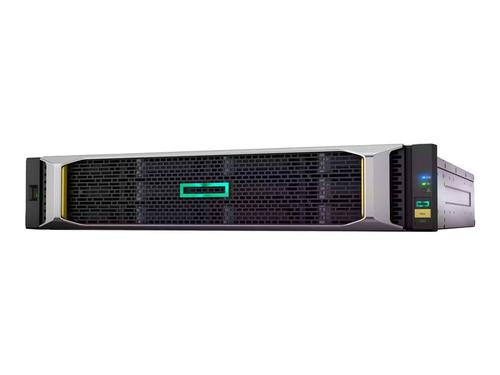

HPE Modular Smart Array 2050 SAS Dual Controller LFF Storage - Hard drive array - 12 bays (SAS-2) - SAS 12Gb/s (external) - rack-mountable - 2U
- Brand
- Hewlett Packard Enterprise
- Product code
- Q1J28B
- SKU
- CMMZNELRWL1JX
- Accelerates applications affordably
- Advanced data services with no experience required
- Keep your business running with expanded data protection features
- Grow flexibly now and into the future
Description
Accelerates applications affordably
The HPE MSA 2050 SAN Storage performs at 200,000 IOPS delivering affordable application acceleration for small to medium-sized businesses both local and remote. Flexible base model delivers 2X more performance than the previous generation HPE MSA 2040 SAN Storage for the same price.
Advanced data services with no experience required
The HPE MSA 2050 SAN Storage is easy to install, easy to use, easy to maintain, no previous storage expertise required. Automated tiering dynamically responds to workload changes, so you don't have to.
Keep your business running with expanded data protection features
The HPE MSA 2050 SAN Storage delivers updated virtualized snapshot technology making data protection and instant recovery a snap. Remote replication with Fiber Channel (FC) and iSCSI supports an affordable disaster recovery solution.
Grow flexibly now and into the future
The HPE MSA 2050 SAN Storage supports data-in-place upgrades protecting drive investments and reduces data migrations.
| General | |
|---|---|
| Device type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SAS-2 |
| Storage | |
| Max Supported Capacity | 168 TB |
| HDD Array External Interface | SAS 12Gb/s |
| Maximum LUNs | 512 |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface type | SAS 6Gb/s |
| Data transfer rate | 600 Mbps |
| Cache / Buffer Size (Max) | 8 GB |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) - 3.5" LFF |
| Interfaces | 2 x USB (management) 2 x Ethernet 1000 (management) - RJ-45 8 x SAS 12Gb/s |
| System requirements | |
| OS Required | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Oracle Solaris, Microsoft Windows Server 2012, Citrix XenServer, Oracle Linux, Microsoft Windows Server 2016, VSI OpenVMS, Microsoft Windows Server 2019 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, CCC, IEC 60950-1, EN 60950-1, FCC Part 15.109, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, China RoHS, EN 55022 Class A, EN 55024 Class A, CNS 13438 Class A, UL 6950-1, ICES-003:2004 Class A, AS/NZS CISPR22 Class A |
| Included Accessories | Rack mounting kit, 2 x 7 m PDU cords |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Dimensions & Weight | |
| Width | 44.7 cm |
| Depth | 57.2 cm |
| Height | 8.9 cm |
| Weight | 18.4 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission | 55 dB |
