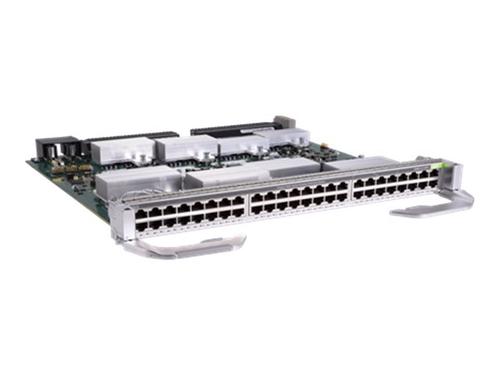

Cisco Catalyst 9600 Series Line Card

C9600-LC-48TX= - 0889728195843

Cisco Catalyst 9600 Series Line Card - Switch - 48 x 100/1000/2.5G/5G/10GBase-T - plug-in module

Brand: Cisco
Product code: C9600-LC-48TX=
SKU: DPQT59XA2G95V
EAN/GTIN: 0889728195843

Up to 24 ports of 40 GE or 12 ports of 100 GE nonblocking
40 GE, 100 GE QSFP28 ports
IPv6 support on the UADP Application-Specific Integrated Circuit (ASIC), providing wire-rate forwarding for IPv6 networks

€20951.13 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Specifications

General

Device type Switch - 48 ports

Enclosure Type Plug-in module

Ports 48 x 100/1000/2.5G/5G/10GBase-T

Performance Bandwidth:2.4 Tbps

Encryption Algorithm 256-bit AES

Features IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Media Access Control Security (MACsec)

Compliant Standards IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

Expansion / Connectivity

Interfaces 48 x 1/2.5/5/10GBase-T RJ-45

Miscellaneous

MTBF 543,000 hours

Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AES-256, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317

Software / System Requirements

OS Required Cisco IOS XE 17.11.1

Dimensions & Weight

Width 38.1 cm

Depth 39.88 cm

Height 4.32 cm

Weight 4.03 kg

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time:next business day

Environmental Parameters

Min Operating Temperature -5 °C

Max Operating Temperature 45 °C

Humidity Range Operating 10 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 10 - 95% (non-condensing)
