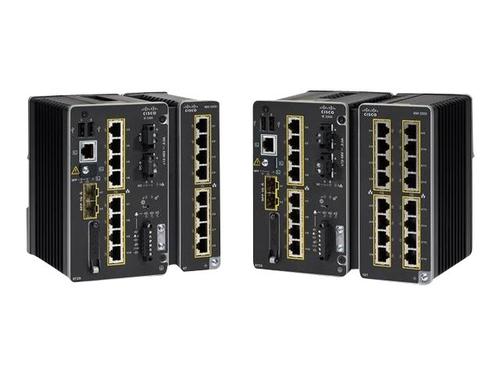

Cisco Catalyst IE3300 Rugged Series

IE-3300-8T2S-A - 889728205337

Cisco Catalyst IE3300 Rugged Series - Network Advantage - switch - Managed - 10 x 10/100/1000 + 2 x SFP - DIN rail mountable - DC power

Brand: Cisco IOT
Product code: IE-3300-8T2S-A
SKU: PUZA65MRF37SI
EAN/GTIN: 889728205337

Built for harsh environments and wide temperature ranges
Fanless, convection-cooled with no moving parts for extended durability
Hardened for vibration, shock and surge, and electrical noise immunity
Improves uptime, performance, and safety of industrial systems and equipment

€7425.37 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Specifications

General

Device type Switch - 10 ports - Managed

Enclosure Type DIN rail mountable

Subtype Gigabit Ethernet

Ports 10 x 10/100/1000 + 2 x SFP

Capacity Queues:8 IGMP multicast groups:1000 VLAN IDs:256 STP instances:128

Routing Protocol IGMPv2, IGMP, IGMPv3

Remote Management Protocol SNMP, SNMP 3, SSH, SCP, NTP, DHCP

Authentication method RADIUS, TACACS+

Features IGMP snooping, Syslog support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LLDP support, Remote Switch Port Analyzer (RSPAN), Flexible NetFlow (FNF), IGMP filtering, Storm Control, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, rate limit, IGMP querier, Voice VLAN, Guest VLAN, Inter-VLAN Routing, Switched Port Analyzer (SPAN), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, VLAN Trunking Protocol (VTP) v.2

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2

RAM 2 GB

Flash memory 1.5 GB

Built-in Devices SD card reader

Expansion / Connectivity

Interfaces 10 x 10/100/1000 Base-T RJ-45 2 x SFP 3 x alarm 1 x serial (RS-232) RJ-45 console 1 x console mini-USB

Power

Power Device Internal power supply

Voltage Required DC 9.6 - 60 V

Power Consumption Operational 33 Watt

Miscellaneous

MTBF 633,420 hours

Compliant Standards EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, MIL-STD-810, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, UL 62368-1, EN 60079-15, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15

Dimensions & Weight

Width 9.14 cm

Depth 13.5 cm

Height 15.2 cm

Weight 1.7 kg

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 60 °C

Min Storage Temperature -40 °C

Max Storage Temperature 85 °C
