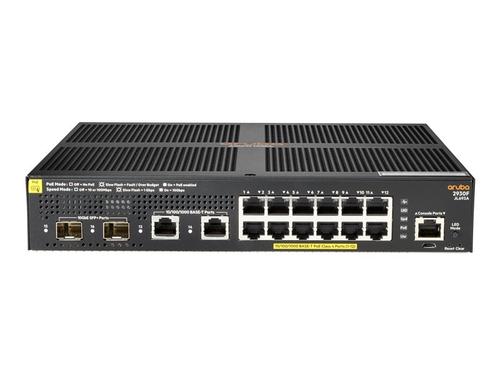

Aruba 2930F 12G PoE+Swch United Kingdom

Brand: Hewlett Packard Enterprise
Product code: JL693A#ACC
SKU: UF313U2B174NE
EAN/GTIN: 119001736822

Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, dynamic segmentation, ACLs, and robust QoS
Supports cloud and on-premises management
Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
Software-defined ready with REST APIs and OpenFlow support
Simple deployment with Zero Touch Provisioning

€902.98 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

General
Device type	Switch - 12 ports - L3 - Managed - stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000
Power over Ethernet (PoE)	PoE+
PoE Budget	139 W
Performance	Throughput:41.7 Mpps Switching capacity:68 Gbps Latency (1 Gbps):3.8 µs Latency (10 Gbps):1.6 µs
Capacity	Jumbo frame size:9220 IPv4 routing table entries:2000 IPv6 routing table entries:1000
MAC Address Table Size	32K entries
Routing Protocol	OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON
Encryption Algorithm	MD5, SSL
Authentication method	RADIUS, PAP, CHAP, TACACS, TACACS+
Features	Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), SNMP support, Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor	1 x ARM Cortex-A9:1.016 GHz
RAM	1 GB DDR3 SDRAM
Flash memory	4 GB
Expansion / Connectivity
Interfaces	12 x 1000Base-T RJ-45 PoE+ 2 x Gigabit / 10Gbit LAN SFP+ 1 x serial (console) 2 x 1000Base-T RJ-45
Expansion slots	1 (total) / 1 (free) x Expansion Slot
Installed Modules Qty (Max)	0 (installed) / 2 (max)
Power
Power Device	Internal power supply
Installed Qty	1
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards	CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Localisation	English / United Kingdom
Software / System Requirements
Software included	Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Dimensions & Weight
Width	25.4 cm
Depth	25.4 cm
Height	4.39 cm
Weight	2.2 kg
Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
Humidity Range Operating	15 - 95% (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	70 °C
Humidity Range Storage	15 - 95% (non-condensing)
