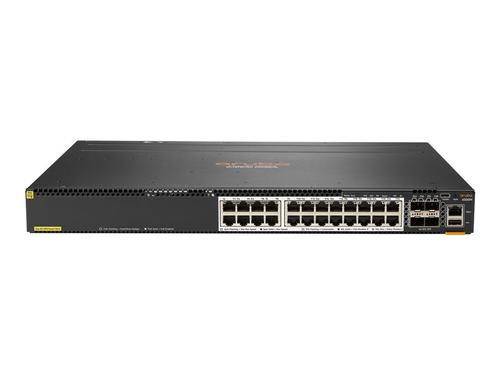

HPE Aruba 6300M
HPE Aruba 6300M - Switch - L3 - Managed - 24 x 1/2.5/5/10GBase-T + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) - front and side to back - rack-mountable - PoE+ (1440 W)
- Brand
- Hewlett Packard Enterprise
- Product code
- JL660A
- SKU
- LJ61MB56B7P9O
- EAN/GTIN
- 190017339429
- Automation and analytics
- Performance and power
- Smarter segmentation
€14475.87
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Automation and analytics
The Aruba CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
Performance and power
The Aruba CX 6300 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
Smarter segmentation
The Aruba CX 6300 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
| General | |
|---|---|
| Device type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 1/2.5/5/10GBase-T + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Power over Ethernet (PoE) | PoE+ |
| PoE Budget | 1440 W |
| Performance | Switching capacity:640 Gbps Throughput:476 Mpps Latency (1 Gbps):4.24 µs Latency (10 Gbps):1.5 µs Latency (25 Gbps):2.91 µs Latency (50 Gbps):3.49 µs Stacking bandwidth:200 Gbps |
| Capacity | Switched virtual interfaces (SVIs):1000 IPv4 host table capacity:32000 IPv6 host table capacity:32000 IPv4 routes (Unicast):64000 IPv6 routes (Unicast):32000 IPv4 routes (Multicast):8000 IPv6 routes (Multicast):8000 IGMP groups:8000 MLD groups:4000 IPv4 ACL entries (ingress):5000 IPv6 ACL entries (ingress):1250 MAC ACL entries (ingress):5000 IPv4 ACL entries (egress):2000 IPv6 ACL entries (egress):500 MAC ACL entries (egress):2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
| Authentication method | RADIUS, TACACS+ |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, High Availability, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), LLDP support, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), Strict Priority (SP), broadcast storm protection, Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt |
| Processor | 1 x ARM Cortex-A72:1.78 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 24 x 1/2.5/5/10GBase-T RJ-45 PoE+ - 60 W 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 1 x USB-C console 1 x management 1 x USB Type A |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Dimensions & Weight | |
| Width | 44.2 cm |
| Depth | 38.5 cm |
| Height | 4.4 cm |
| Weight | 6.06 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
