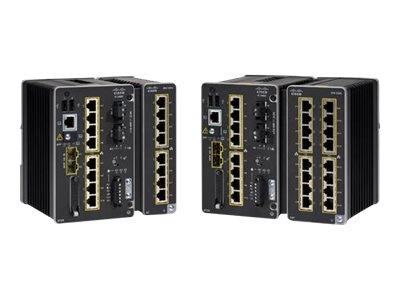

Cisco Catalyst IE3400 Rugged Series

IE-3400-8P2S-E - 889728140348

Cisco Catalyst IE3400 Rugged Series - Network Essentials - switch - Managed - 8 x 10/100/1000 + 2 x Gigabit SFP - DIN rail mountable - DC power

Brand: Cisco IOT
Product code: IE-3400-8P2S-E
SKU: 79KD0K22HBT7B
EAN/GTIN: 889728140348

Robust industrial design
Alarm I/O for monitoring and signaling to external equipment
Full Gigabit Ethernet interfaces

€10258.93 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Description

Robust industrial design

Fanless, convection-cooled with no moving parts for extended durability.

Full Gigabit Ethernet interfaces

Provides secure access for new high-speed applications in the industrial space.

Specifications

General

Device type Switch - 10 ports - Managed

Enclosure Type DIN rail mountable

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 + 2 x Gigabit SFP

Capacity Queues:8 IGMP groups:1000 VLAN IDs:256 STP instances:128 ACL:1500

MAC Address Table Size 8K entries

Routing Protocol IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP

Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP

Authentication method Secure Shell (SSH), RADIUS, TACACS+

Features DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, Internet Control Message Protocol (ICMP), CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, Dying Gasp, VLAN Trunking Protocol (VTP) v.2

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2

RAM 4 GB

Flash memory 1.5 GB

Built-in Devices SD card reader

Expansion / Connectivity

Interfaces 8 x 10/100/1000 Base-T RJ-45 2 x 1000Base-X SFP 1 x serial (RS-232) RJ-45 1 x mini-USB Type B 2 x alarm 1 x alarm

Expansion slots 1 (total) / 1 (free) x SD Memory Card

Power

Power Device Internal power supply

Power Redundancy Yes

Voltage Required DC 9.6 - 60 V

Electric Current Required 5.4 A

Power Consumption Operational 39 Watt

Miscellaneous

MTBF 549,808 hours

Compliant Standards EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15

Dimensions & Weight

Width 9.14 cm

Depth 13.5 cm

Height 15.2 cm

Weight 1.7 kg

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - 5 years - response time:10 days Technical support - 90 days

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 70 °C

Humidity Range Operating 5 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 85 °C

Humidity Range Storage 5 - 95% (non-condensing)
