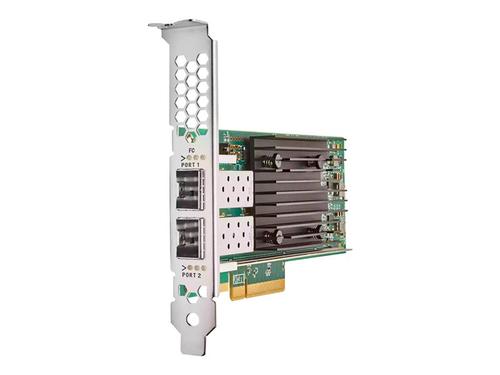

HPE StoreFabric SN1610Q Dual Port
R2E09A - 190017354712
HPE StoreFabric SN1610Q Dual Port - Host bus adapter - PCIe 4.0 x8 low profile - 32Gb Fibre Channel x 2 - for ProLiant DL325 Gen10, DL345 Gen10, DX360 Gen10, ML350 Gen11, XL220n Gen10, XL290n Gen10
- Brand
- Hewlett Packard Enterprise
- Product code
- R2E09A
- SKU
- D7NG61C781RLE
- EAN/GTIN
- 190017354712
- Performance of up to 2 million IOPS and 12,800 Mbps of aggregate throughput
- Higher performance with existing server investments when compared to 16 Gb FC adapters
- More data moved per watt of power consumed when compared to 16 Gb FC adapters
- Improve database transactional performance, enable faster business decisions with better data mining, and host more VMs
- Port isolation design delivers deterministic and scalable performance on each port
- Provides hardware root of trust to protect against malicious firmware downloads
€7926.1
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Specifications
General
Device type
Host bus adapter
Form factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 4.0 x8
Networking
Ports
32Gb Fibre Channel x 2
Connectivity technology
Wired
Cabling type
Fibre optic
Data Link Protocol
8Gb Fibre Channel (Short Wave), 16Gb Fibre Channel (Short Wave), 32Gb Fibre Channel (Short Wave)
Features
Auto-negotiation
Expansion / Connectivity
Expansion slots
2 (total) / 0 (free) x SFP+
Interfaces
2 x 32Gb Fibre Channel - LC multi-mode
Miscellaneous
Included Accessories
Low-profile bracket, 2 x 32Gb SFP+, standard bracket
Software / System Requirements
OS Required
VMware ESX, Red Hat Enterprise Linux 7.x, VMware ESXi 6.5, Microsoft Windows Server 2016 with Hyper-V, VMware ESXi 6.7, Microsoft Windows Server 2019 with Hyper-V, Red Hat Enterprise Linux 8.x, SUSE Linux 12.x, SUSE Linux 15.x
Dimensions & Weight
Width
1.234 cm
Depth
16.751 cm
Height
11.115 cm
Manufacturer Warranty
Service & Support
Limited warranty - parts - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 90% (non-condensing)
Compatibility Information
Designed For
HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4510 Gen10 HPE ProLiant DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL365 Gen10 Plus, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, DX360 Gen10 Plus, ML350 Gen11 Performance 3, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL220n Gen10 Plus, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL290n Gen10 Plus, XL645d Gen10 Plus
