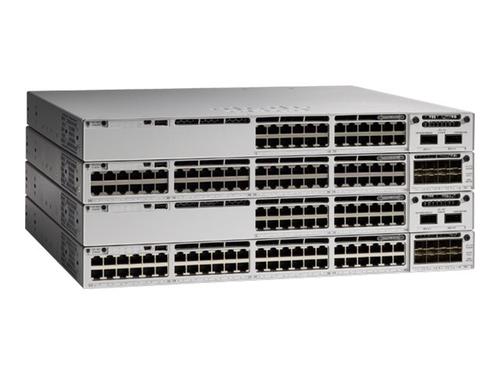

Cisco Catalyst 9300L
C9300L-48P-4X-A - 889728174640
Cisco Catalyst 9300L - Network Advantage - switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (505 W)
- Brand
- Cisco
- Product code
- C9300L-48P-4X-A
- SKU
- TOMF1Y1K2VRMB
- EAN/GTIN
- 889728174640
€10418.57
(Inc. VAT)
(Delivery 2-4 working days)
Specifications
General
Device type
Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power over Ethernet (PoE)
PoE+
PoE Budget
505 W
Performance
Switching capacity with stacking:496 Gbps Switching capacity:176 Gbps Forwarding rate:130.95 Mpps Forwarding rate with stacking:369.05 Mpps
Capacity
IPv4 routes:32000 IPv6 routes:16000 Multicast scale:8000 QoS scale entries:5120 ACL scale entries:5120 Routed ports:416 VLANs supported:4094 Switched virtual interfaces (SVIs):1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
128-bit AES, 256-bit AES
Features
Non-Stop Forwarding (NSF), Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Blue Beacon LED, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
RAM
8 GB
Flash memory
16 GB
Status Indicators
Status
Expansion / Connectivity
Interfaces
48 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-X SFP+ uplink 1 x management (LAN) RJ-45 1 x console 1 x USB 2.0
Power
Power Device
Internal power supply - hot-plug
Installed Qty
1
Max Supported Qty
2
Power Redundancy
Optional
Power Provided
715 Watt
Voltage Required
AC 120/230 V (50 - 60 Hz)
Miscellaneous
MTBF
309,020 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04
Dimensions & Weight
Width
44.5 cm
Depth
4.4 cm
Height
44.9 cm
Weight
7.03 kg
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - lifetime - response time:next business day
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
