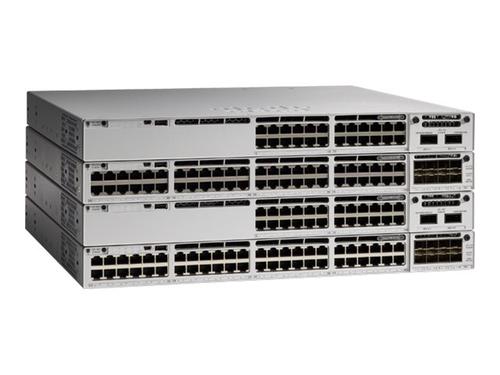

Cisco Catalyst 9300L

C9300L-24P-4G-E - 889728174565

Cisco Catalyst 9300L - Network Essentials - switch - L3 - Managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - rack-mountable - PoE+ (505 W)

Brand: Cisco
Product code: C9300L-24P-4G-E
SKU: 9WK2IFQPM2WKM
EAN/GTIN: 889728174565

€3285.93 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Specifications

General

Device type Switch - 24 ports - L3 - Managed - stackable

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)

Power over Ethernet (PoE) PoE+

PoE Budget 505 W

Performance Switching capacity:56 Gbps Stacking bandwidth:320 Gbps Switching capacity with stacking:376 Gbps Forwarding rate:41.66 Mpps Forwarding rate with stacking:279.76 Mpps

Capacity IPv4 routes:32000 IPv6 routes:16000 Multicast scale:8000 QoS scale entries:5120 ACL scale entries:5120 VLANs supported:4094 FNF entries:64000 Switched virtual interfaces (SVIs):1000 Packet buffer size:16 MB Virtual networks:64

MAC Address Table Size 32000 entries

Jumbo Frame Support 9198 bytes

Routing Protocol OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG

Encryption Algorithm 128-bit AES, 256-bit AES

Features Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6

RAM 8 GB

Flash memory 16 GB

Built-in Devices RFID tag

Status Indicators Status

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 PoE+ 4 x 1000Base-X SFP uplink 1 x network stack device 1 x management (LAN) RJ-45 1 x console 1 x USB 2.0

Power

Power Device Internal power supply - hot-plug

Max Supported Qty 2

Power Redundancy Optional

Power Provided 715 Watt

Voltage Required AC 120/230 V (50 - 60 Hz)

Miscellaneous

MTBF 346,940 hours

Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04

Dimensions & Weight

Width 44.5 cm

Depth 4.4 cm

Height 40.9 cm

Weight 6.81 kg

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time:next business day Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature -5 °C

Max Operating Temperature 45 °C

Humidity Range Operating 5 - 90% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 5 - 90% (non-condensing)
