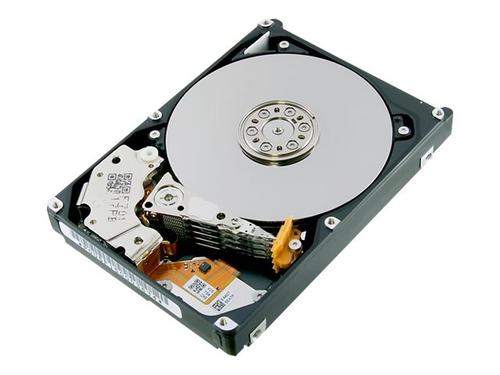

Toshiba AL15SEB Series AL15SEB06EQ - Hard drive - 600 GB - internal - 2.5" - SAS 12Gb/s - 10500 rpm - buffer: 128 MB
- Brand
- TOSHIBA HDD
- Product code
- AL15SEB06EQ
- SKU
- Y4PAXDMOD4MI3
- EAN/GTIN
- 4260557511022
- Hard drive
- 600 GB
- internal
- 2.5"
- SAS 12Gb/s
- 10500 rpm
- buffer: 128 MB
- Weight: 0.18 KG
Product Info
The 12.0 Gbit/s SAS interface AL15SEB Series Enterprise Performance HDDs provide great capacity and 10,500rpm performance with enterprise-class reliability. They are engineered for mission critical IT operations, including database servers and hybrid storage platforms. Toshiba Persistent Write Cache technology protects against data loss in the event of unexpected power loss, and helps maintain suitable performance and data reliability for high-duty cycle mission critical environments.
Description
Enhanced durability
Designed to withstand the rigors of continuous operation, the Toshiba AL15SEB Series hard drive boasts an impressive MTBF of 2,000,000 hours, ensuring reliability and performance for critical systems.
High-speed performance
With a data transfer rate of 1. 2 GBps and an internal data rate of 260 MBps, coupled with a spindle speed of 10,500 rpm, this hard drive delivers swift and efficient access to data, enhancing overall system performance.
Optimized for harsh environments
Capable of operating in a wide range of temperatures from 5°C to 55°C and designed to handle humidity levels from 5 - 95% (non-condensing), this hard drive is built to perform in various environmental conditions without compromising data integrity.
Advanced storage technology
Featuring Persistent Write Cache technology and advanced format 512e, the Toshiba AL15SEB Series hard drive offers enhanced data reliability and storage efficiency, making it an ideal solution for enterprise applications.
Energy-efficient operation
With power consumption as low as 3 W in active idle mode and 6. 5 W during read/write operations, this hard drive combines high performance with energy efficiency, reducing operational costs.
| General | |
|---|---|
| Buffer Size | 128 MB |
| Form Factor | 2.5" |
| Weight | 230 g |
| Capacity | 600 GB |
| Device Type | Hard drive - internal |
| Interface | SAS 12Gb/s |
| Features | Advanced format 512e, 24x7 availability, Persistent Write Cache technology |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 3 Watt (active idle)6.5 Watt (read/write) |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 400 g @ 2 ms |
| Vibration Tolerance (operating) | 1 g @ 20-300 Hz |
| Vibration Tolerance (non-operating) | 5 g @ 20-300 Hz |
| Shock Tolerance (operating) | 100 g @ 2 ms |
| Performance | |
| Internal Data Rate | 260 MBps |
| Spindle Speed | 10500 rpm |
| Average Latency | 2.86 ms |
| Drive Transfer Rate | 1.2 GBps (external) |
| Reliability | |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| Non-Recoverable Errors | 10 per 10^17 |
| MTBF | 2,000,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SAS 12 Gb/s |
