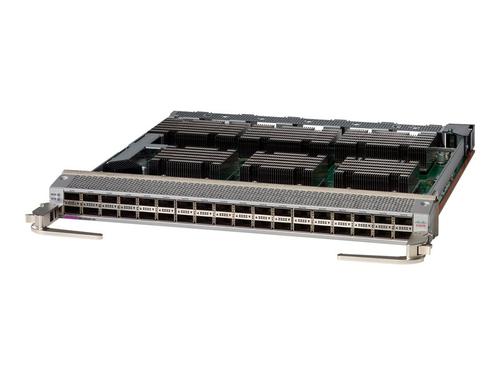

Cisco Nexus 9500R Buffer Linecard with external TCAM
Cisco Nexus 9500R Buffer Linecard with external TCAM - Expansion module - 100 Gigabit QSFP28 x 36 - for P/N: C1-N9K-C9508, N9K-C9504-FM-R
- Brand
- Cisco
- Product code
- N9K-X9636C-RX=
- SKU
- ANH5862XK0YMY
€109501.46
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Expansion module |
| Form factor | Plug-in module |
| Networking | |
| Ports | 100 Gigabit QSFP28 x 36 |
| Connectivity technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Performance | Bandwidth:3.6 Tbps |
| Capacity | Multicast routes:250000 Virtual interfaces (VLANs):4096 Maximum number of links in a port channel:32 ECMP routing:256 Maximum number of port channels:1000 SPAN sessions:32 IPv4 routes:2000000 |
| MAC Address Table Size | 750000 entries |
| Features | ECMP, built-in ASIC, 16GB packet buffer |
| Processor / Memory | |
| Processor Clock Speed | 2.4 GHz |
| RAM | 16 GB |
| Flash memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 36 x 100Gb Ethernet - QSFP28 |
| Miscellaneous | |
| MTBF | 224,060 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4 |
| Power | |
| Power Consumption Operational | 1050 Watt |
| Dimensions & Weight | |
| Weight | 7.2 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year Limited warranty - advance parts replacement - 10 days |
| Compatibility Information | |
| Designed For | P/N:C1-N9K-C9508, N9K-C9504-FM-R |
