Cisco Catalyst IE3200 Rugged Series

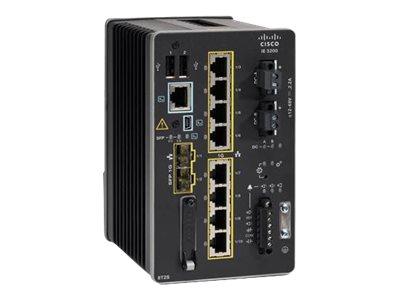

Cisco Catalyst IE3200 Rugged Series - Network Essentials - switch - Managed - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - DIN rail mountable - PoE+ (240 W) - DC power
- Brand
- Cisco IOT
- Product code
- IE-3200-8P2S-E
- SKU
- O7Z3OVSRP2B9M
- EAN/GTIN
- 889728140157
- Scalability for industrial networks
- Compact form factor for rugged use cases
€5842.3
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Scalability for industrial networks
Accelerate digital transformation and upgrade your IoT infrastructure to Gigabit speeds. The IE3200 packs Gigabit Ethernet ports for a wide variety of industrial and extended enterprise connectivity needs.
Compact form factor for rugged use cases
The Catalyst IE3200 ruggedized Ethernet switch is optimized for size, weight, and power, and it is easy to integrate into space- and power-constrained cabinet installations. With its rugged, die-cast chassis, the IE3200 is well suited for harsh environments.
| General | |
|---|---|
| Device type | Switch - 8 ports - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Capacity | SPAN sessions:256 IGMP groups:1000 STP instances:128 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP |
| Authentication method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, Internet Control Message Protocol (ICMP), CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, Dying Gasp, VLAN Trunking Protocol (VTP) v.2 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2 |
| RAM | 2 GB |
| Flash memory | 1.5 GB |
| Built-in Devices | SD card reader |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ 2 x 1000Base-X SFP 1 x serial (RS-232) RJ-45 1 x mini-USB Type B |
| Expansion slots | 1 (total) / 1 (free) x SD Memory Card |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | DC 9.6 - 60 V |
| Electric Current Required | 5.5 A |
| Power Consumption Operational | 35 Watt |
| Miscellaneous | |
| MTBF | 613,125 hours |
| Compliant Standards | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15 |
| Dimensions & Weight | |
| Width | 9.14 cm |
| Depth | 13.5 cm |
| Height | 15.2 cm |
| Weight | 1.7 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 5 years - response time:10 days |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
