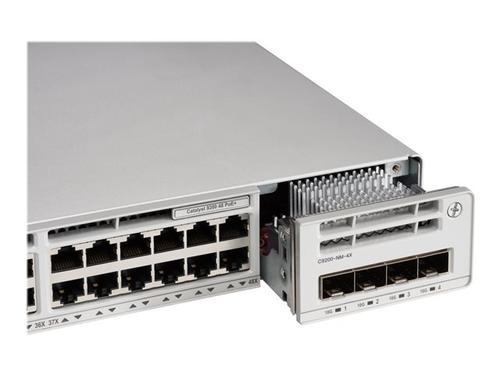

Cisco Catalyst 9200 - Essential Edition - switch - smart - 48 x 10/100/1000 (PoE+) - rack-mountable - PoE+ (740 W)
- Brand
- Cisco
- Product code
- C9200-48P-E
- SKU
- VLTCBDJI1Y9EZ
- EAN/GTIN
- 889728168250
- Essential Edition
- switch
- smart
- 48 x 10/100/1000 (PoE+)
- rack-mountable
- PoE+ (740 W)
- Weight: 8.26 KG
Product Info
The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT SIMPLIFIED.
Description
CONFIGURATION
48 x 10/100/1000M Ethernet with PoE+, 740W total PoE budget
IT SIMPLIFIED
Catalyst 9200 Series switches simplify complexity, optimize IT, and reduce operational costs with Cisco UADP ASIC and Cisco IOS XE providing consistency, intelligence and automation
SECURE
Enhanced security with MACsec encryption, full flexible NetFlow, and trustworthy solutions that protect the integrity of the hardware as well as the software and all data that flows through the switch
ALWAYS-ON
Differentiated resiliency with Field-Replaceable Units (FRU) and redundant power supplies and fans, modular uplinks, 160 Gbps backplane stacking and layer 3 support
MANAGEMENT
Choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard
| General | |
|---|---|
| Enclosure Type | Rack-mountable |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Subtype | Gigabit Ethernet |
| PoE Budget | 740 W |
| Power Over Ethernet (PoE) | PoE+ |
| Ports | 48 x 10/100/1000 (PoE+) |
| Jumbo Frame Support | 9198 bytes |
| Device Type | Switch - 48 ports - smart - stackable |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Performance | Wireless bandwidth: up to 48 GbpsSwitching capacity: 176 GbpsForwarding rate: 261.9 Mpps |
| Capacity | Virtual networks: 4MAC addresses: 32000IPv4 routes: 14000Indirect IPv4 routes: 4000Direct IPv4 routes: 10000IPv4 routing table entries: 4000IPv6 routing table entries: 2000Multicast scale: 1000ACL scale entries: 16000Packet buffer size: 6 MBFlexible NetFlow entries: 16000VLAN IDs: 1000 |
| Remote Management Protocol | NETCONF, RESTCONF |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Features | QoS, RSPAN, FNF, MACsec support, CoPP, Sampled NetFlow, SPAN, EEM, FHS, DNA support |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ - 30 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business dayTechnical support - phone consulting - 90 days |
| Miscellaneous | |
| MTBF | 375,570 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 1000 Watt |
| Voltage Required | AC 100-240 V |
| Power Device | Internal power supply - hot-plug |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 16.9.2 or later |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Dimensions & Weight | |
| Width | 44.5 cm |
| Depth | 4.4 cm |
| Height | 35 cm |
| Weight | 5.5 kg |
