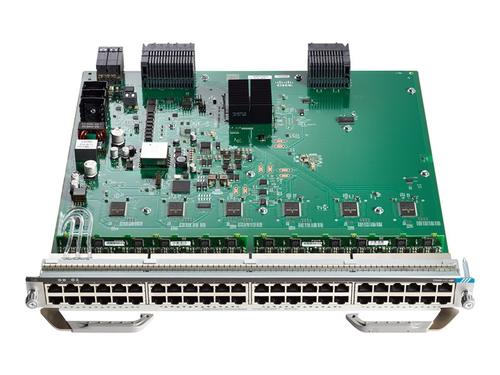

Cisco Catalyst 9400 Series Line Card
C9400-LC-48P= - 889728057264
Cisco Catalyst 9400 Series Line Card - Switch - 48 x 10/100/1000 - plug-in module - PoE+
- Brand
- Cisco
- Product code
- C9400-LC-48P=
- SKU
- WZ4OI9AOI91HN
- EAN/GTIN
- 889728057264
- UPoE is enabled, capable of up to 60W on all the ports in the line card
- Energy Efficient Ethernet 802.3az
- IEEE 802.3af/at and Cisco pre-standard PoE
- IEEE 802.1AE and Cisco TrustSec capability in hardware
€6624.31
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Specifications
General
Device type
Switch - 48 ports
Enclosure Type
Plug-in module
Ports
48 x 10/100/1000
Power over Ethernet (PoE)
PoE+
Jumbo Frame Support
9198 bytes
Features
MACsec support
Compliant Standards
IEEE 802.3af, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az
Expansion / Connectivity
Interfaces
48 x 1000Base-T RJ-45 PoE+
Power
Power Consumption Operational
65 Watt
Miscellaneous
MTBF
771,720 hours
Compliant Standards
CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 V1.6.1, EN 55022 Class A, IEEE 1588, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
OS Required
Cisco IOS XE 16.8.1 or later
Dimensions & Weight
Width
4.06 cm
Depth
37.9 cm
Height
37 cm
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time:next business day
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)
