HPE Aruba 2540 48G 4SFP+

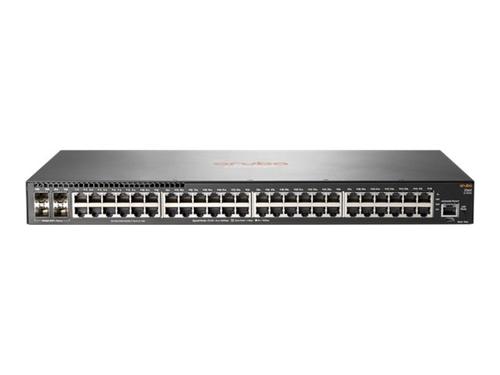

HPE Aruba 2540 48G 4SFP+ - Switch - Managed - 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ - side to side airflow - desktop, rack-mountable, wall-mountable
- Brand
- Hewlett Packard Enterprise
- Product code
- JL355A#ACC
- SKU
- CGCWYHNXRHSHQ
- EAN/GTIN
- 5054444385143
- Reliable and secure access
- Cloud Management
- Single view of the network
€3589.52
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Reliable and secure access
Enhanced access security, ACLs, traffic prioritization, sFlow, and IPv6 host support.
Cloud management
Speed remote deployment with Aruba Central.
Single view of the network
Consistent wired and wireless experience with Aruba CLEARPASS POLICY MANAGER AND AIRWAVE NETWORK MANAgement.
| General | |
|---|---|
| Device type | Switch - 48 ports - Managed |
| Enclosure Type | Side to side airflow desktop, rack-mountable, wall-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| Performance | Throughput:112 Mpps Switching capacity:176 Gbps 1 Gbps copper latency (64-byte packets):3.8 µs 10 Gbps fibre latency (64-byte packets):1.6 µs |
| Capacity | RIP routes:256 |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 9220 bytes |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, RIPng, MLDv2 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, RMON 3, RMON 9, Telnet, SNMP 2c, HTTP, SSH-2, CLI, SSH 6 |
| Encryption Algorithm | SSL |
| Authentication method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | VLAN support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Multiple VLAN Registration Protocol (MVRP) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1s, IEEE 802.3az |
| Processor | 1 x ARM Cortex-A9:1016 MHz |
| RAM | 1 GB DDR3 SDRAM |
| Flash memory | 4 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 4 x Gigabit / 10Gbit LAN SFP+ 1 x console RJ-45 management 1 x Type B management |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 46.6 Watt |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:CISPR 24:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localisation | English / United Kingdom |
| Dimensions & Weight | |
| Width | 44.25 cm |
| Depth | 24.63 cm |
| Height | 4.39 cm |
| Weight | 3.1 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
