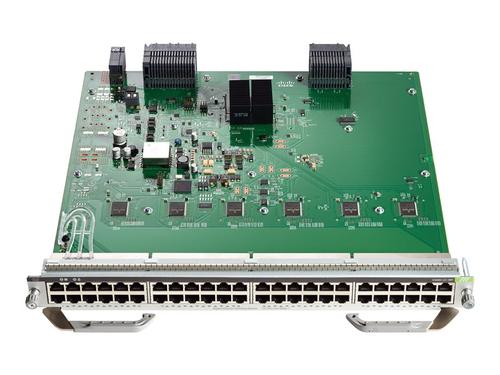

Cisco Catalyst 9400 Series Line Card
Cisco Catalyst 9400 Series Line Card - Switch - 48 x 10/100/1000 - plug-in module (60 W)
- Brand
- Cisco
- Product code
- C9400-LC-48T=
- SKU
- VK9R1PWWK2ATR
- EAN/GTIN
- 5054444090153
- UPoE is enabled, capable of up to 60W on all the ports in the line card
- Energy Efficient Ethernet 802.3az
- IEEE 802.3af/at and Cisco pre-standard PoE
- IEEE 802.1AE and Cisco TrustSec capability in hardware
€6202.63
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Switch - 48 ports |
| Enclosure Type | Plug-in module |
| Ports | 48 x 10/100/1000 |
| PoE Budget | 60 W |
| Jumbo Frame Support | 9216 bytes |
| Features | Port Aggregation Protocol (PAgP) support, Energy Efficient Ethernet, Precision Time Protocol (PTP), TrustSec support |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as, IEEE 802.3az |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 V1.6.1, EN 55022 Class A, IEEE 1588, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 16.6 or later |
| Dimensions & Weight | |
| Width | 4.06 cm |
| Depth | 37.9 cm |
| Height | 37 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time:next business day |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
