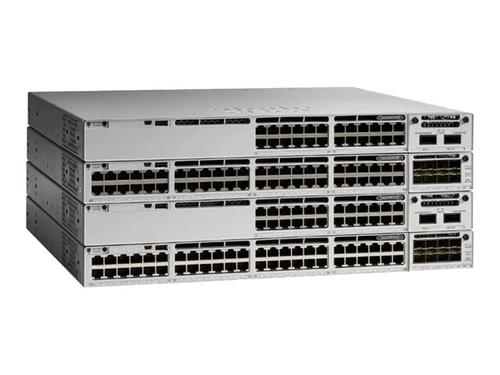

Cisco Catalyst 9300
Cisco Catalyst 9300 - Network Essentials - switch - L3 - Managed - 36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) - rack-mountable - UPOE (490 W)
- Brand
- Cisco
- Product code
- C9300-48UXM-E
- SKU
- RY89MY20FLFNR
- EAN/GTIN
- 889728035712
- Cloud ready
- Optimized for mobility
€8997.01
(Inc. VAT)
(Delivery 2-4 working days)
Description
Cloud ready
Simplify, secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.
Optimized for mobility
Catalyst 9300 series access switches give you smart, simple, and highly secure unified access.
| General | |
|---|---|
| Device type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) |
| Power over Ethernet (PoE) | UPOE |
| PoE Budget | 490 W |
| Performance | Switching capacity:580 Gbps Stacking bandwidth:480 Gbps Forwarding rate:431.54 Mpps |
| Capacity | IPv4 routing table entries:32000 IPv6 routing table entries:16000 Flexible NetFlow entries:64000 VLAN IDs:4000 Switched virtual interfaces (SVIs):2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 8 GB |
| Flash memory | 16 GB |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 36 x 2.5Gbit LAN RJ-45 UPOE 12 x 1/2.5/5/10GBase-T UPOE 1 x USB 2.0 |
| Expansion slots | 1 (total) / 1 (free) x Expansion Slot |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| MTBF | 202,160 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Dimensions & Weight | |
| Width | 44.5 cm |
| Depth | 47 cm |
| Height | 4.4 cm |
| Weight | 9.34 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time:next business day Technical support - consulting - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
