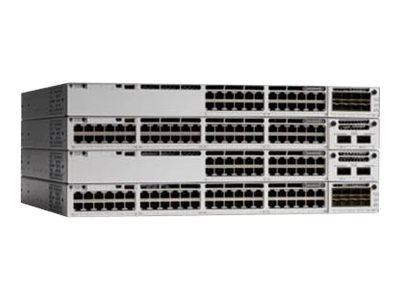

Cisco Catalyst 9300

C9300-48UXM-A - 889728051613

Cisco Catalyst 9300 - Network Advantage - switch - L3 - Managed - 36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) - rack-mountable - UPOE (490 W)

Brand: Cisco
Product code: C9300-48UXM-A
SKU: EI8DTU09O0Y0S
EAN/GTIN: 889728051613

Cloud ready
Optimized for mobility

€14200.92 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Description

Cloud ready

Simplify, secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.

Optimized for mobility

Catalyst 9300 series access switches give you smart, simple, and highly secure unified access.

Specifications

General

Device type Switch - 48 ports - L3 - Managed - stackable

Enclosure Type Rack-mountable 1U

Subtype 2.5 Gigabit Ethernet

Ports 36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE)

Power over Ethernet (PoE) UPOE

PoE Budget 490 W

Performance Switching capacity:580 Gbps Stacking bandwidth:480 Gbps Forwarding rate:431.54 Mpps

Capacity IPv4 routing table entries:32000 IPv6 routing table entries:16000 Flexible NetFlow entries:64000 VLAN IDs:4000 Switched virtual interfaces (SVIs):2000

MAC Address Table Size 32000 entries

Jumbo Frame Support 9198 bytes

Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng

Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Encryption Algorithm 128-bit AES

Features Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

RAM 8 GB

Flash memory 16 GB

Status Indicators Status

Expansion / Connectivity

Interfaces 36 x 2.5Gbit LAN RJ-45 UPOE 12 x 1/2.5/5/10GBase-T UPOE 1 x USB 2.0

Expansion slots 1 (total) / 1 (free) x Expansion Slot

Power

Power Device Internal power supply - hot-plug

Installed Qty 1

Max Supported Qty 2

Power Redundancy Optional

Power Provided 1100 Watt

Voltage Required AC 120/230 V (50 - 60 Hz)

Miscellaneous

MTBF 202,160 hours

Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Dimensions & Weight

Width 44.5 cm

Depth 47 cm

Height 4.4 cm

Weight 9.34 kg

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time:next business day Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature -5 °C

Max Operating Temperature 45 °C

Humidity Range Operating 5 - 90% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 5 - 90% (non-condensing)
