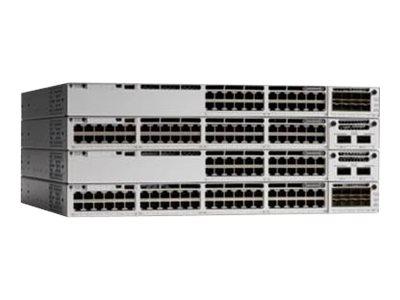

Cisco Catalyst 9300
Cisco Catalyst 9300 - Network Essentials - switch - L3 - Managed - 24 x 10/100/1000 (UPOE) - rack-mountable - UPOE (830 W)
- Brand
- Cisco
- Product code
- C9300-24U-E
- SKU
- 6Q39PYLVPZU0C
- EAN/GTIN
- 889728035798
- Cloud ready
- Optimized for mobility
€3703.04
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Cloud ready
Simplify, secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.
Optimized for mobility
Catalyst 9300 series access switches give you smart, simple, and highly secure unified access.
| General | |
|---|---|
| Device type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (UPOE) |
| Power over Ethernet (PoE) | UPOE |
| PoE Budget | 830 W |
| Performance | Switching capacity:128 Gbps Stacking bandwidth:480 Gbps Forwarding rate:154.76 Mpps |
| Capacity | IPv4 routing table entries:32000 IPv6 routing table entries:16000 Flexible NetFlow entries:64000 VLAN IDs:4000 Switched virtual interfaces (SVIs):2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, EIGRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | Trunking, full duplex mode, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Encapsulated Remote SPAN (ERSPAN), Security Group Access Control List (SGACL), IT Service Management (ITSM) integration |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 8 GB |
| Flash memory | 16 GB |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 UPOE 1 x USB 2.0 |
| Expansion slots | 1 (total) / 1 (free) x Expansion Slot |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| MTBF | 238,410 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | |
| OS Required | Cisco IOS Universal |
| Dimensions & Weight | |
| Width | 44.5 cm |
| Depth | 44.5 cm |
| Height | 4.4 cm |
| Weight | 7.54 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time:next business day Technical support - consulting - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
