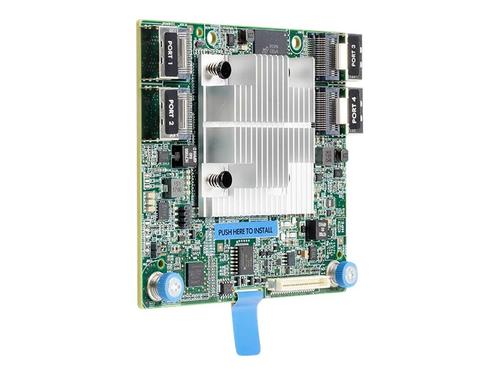

HPE Smart Array P816i-a SR Gen10
HPE Smart Array P816i-a SR Gen10 - Storage controller (RAID) - 16 Channel - SATA 6Gb/s / SAS 12Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM - PCIe 3.0 x8 - for Apollo 4200 Gen10, ProLiant DL325 Gen10, DL360 Gen10, DL365 Gen10
- Brand
- Hewlett Packard Enterprise
- Product code
- 869083-B21
- SKU
- KLDP1A9Z1LW4O
- EAN/GTIN
- 4549821037841
- Storage interface (SAS/SATA)
- 4 GB Flash-Backed Write Cache (FBWC)
- PCI Express 3.0 x8 link
- RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)
- Mixed Mode(RAID logic drives and HBA physical drives simultaneously)
- Legacy and UEFI boot operation
- UEFI System Utilities (storage configuration)
- Up to 238 physical drives
- Up to 64 logical drives
- HPE Smart Array SR SmartCache (license included)
- HPE SSD Smart Path
- Rapid Parity Initialization (RPI)
- Rapid rebuild
- Drive Sanitize
- Performance Optimization-Degraded Reads and Read Coalescing
- Power efficiency
- Seamless upgrades from HPE Smart Array S-class and E-class controllers
- FIPS 140-2 Level 1 Implementation Under
€4777.25
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 3.0 x8 |
| Features | Low profile heatsink |
| Storage Controller | |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data transfer rate | 12 Gbit/s |
| Buffer size | 4 GB |
| Supported devices | Hard drive, disk array (RAID) |
| Channel Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Maximum LUNs | 64 |
| Expansion / Connectivity | |
| Interfaces | 4 x SATA 6Gb/s / SAS 12Gb/s (internal) |
| Miscellaneous | |
| Features | Flash Backed Write Cache (FBWC) |
| Compliant Standards | FIPS 140-2 Level 1 |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server |
| Compatibility Information | |
| Designed For | HPE Apollo 4200 Gen10 for HPE Ezmeral Tracking HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 HPE ProLiant DL325 Gen10, DL325 Gen10 Base, DL325 Gen10 Entry, DL325 Gen10 Performance, DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL325 Gen10 SMB Solution, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 32TB Performance Server for Cohesity DataPlatform, DL360 Gen10 77TB Performance Server for Cohesity DataPlatform, DL360 Gen10 All Flash Server for Datera, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Network Choice for SAP HANA Compute Block, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL360 Gen10 Premium, DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform, DL360 Gen10 Server for CTERA, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL360 Gen10 Special Server, DL365 Gen10 Plus, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance |
