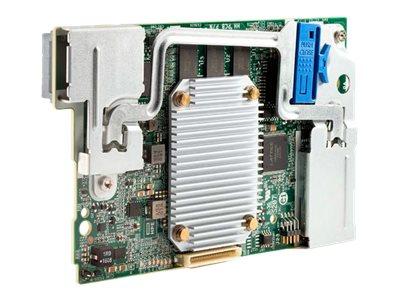

HPE Smart Array P204i-b SR Gen10 - Storage controller (RAID) - 4 Channel - SATA 6Gb/s / SAS 12Gb/s - RAID RAID 0, 1, 5, 6, 10, 1 ADM - PCIe 3.0 x8 - for ProLiant BL460c Gen10
- Brand
- Hewlett Packard Enterprise
- Product code
- 804367-B21
- SKU
- SWZ081CTBHI9Y
- Increased performance for faster data insights
- Built-in reliability and security
- Improved efficiency and storage management
Description
Increased performance for faster data insights
The HPE Smart Array P204i-b SR Gen10 controller is an enterprise-class controller, that increases performance in messaging, database, or general server applications and delivers SAS connectivity on the server blade, when connected to internal storage devices. Increases performance with flash-backed write cache and reduces latency in write-intensive applications, that require heavy logging, such as databases. Enhances performance in storage environments, where data is read repeatedly from a large number of hard drives to create a faster I/O path between the controller and hard drive.
Built-in reliability and security
Long-term data retention with flash-backed write cache for improved data reliability.
Improved efficiency and storage management
The HPE Smart Array P204i-b SR Gen10 controller has increased flexibility with Mixed Mode, which operates in RAID and HBA simultaneously. Rapidly configure simple RAID volumes on unconfigured servers with the UEFI configuration tool, which also facilitates scripting support to configure an array via iLO through RESTful interface.
| General | |
|---|---|
| Device type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 3.0 x8 |
| Storage Controller | |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data transfer rate | 12 Gbit/s |
| Buffer size | 1 GB |
| Supported devices | Hard drive, disk array (RAID) |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 1 ADM |
| Maximum LUNs | 64 |
| Expansion / Connectivity | |
| Interfaces | 1 x SATA 6Gb/s / SAS 12Gb/s (internal) |
| Miscellaneous | |
| Features | Flash Backed Write Cache (FBWC) |
| Compliant Standards | FIPS 140-2 Level 1 |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server |
| Compatibility Information | |
| Designed For | HPE ProLiant BL460c Gen10 |
