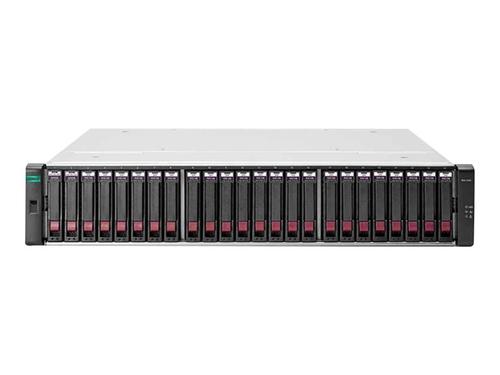

HPE Modular Smart Array 2042 Hybrid Flash w/o SFF Bundle - Hard drive array - 8 TB - 24 bays (SAS-3) - HDD 1.2 TB x 6 + SSD 400 GB x 2 - SAS 12Gb/s (external) - rack-mountable - 2U - Top Value Lite
- Brand
- Hewlett Packard Enterprise
- Product code
- Q5U47A
- SKU
- K4R2L2YHL7VDR
- Accelerates applications affordably
- Set it and forget it
- Grow flexibly now and into the future
Description
Accelerates applications affordably
The HPE MSA 2042 SAN storage is one of the fast entry-level storage arrays, and comes with SSD capacity standard. The MSA 2042 is optimized, based on your typical target workload, write intensive or mixed use. The MSA 2042 offers customers the right SSD option for every application.
Set it and forget it
The HPE MSA 2042 SAN storage provides built-in, real-time tiering dynamically moving constantly used data to flash for increased performance and moving less used data to lower-cost media.
Grow flexibly now and into the future
The HPE MSA 2042 SAN storage has data-in-place upgrades reduce data migration and drive investments. Start small and scale as needed with any combination of SSD, SAS or midline SAS drives.
| General | |
|---|---|
| Device type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 8 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Storage | |
| Total Array Capacity | 8 TB |
| Max Supported Capacity | 76.8 TB |
| HDD Array External Interface | SAS 12Gb/s |
| Maximum LUNs | 512 |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface type | SAS 12Gb/s |
| Data transfer rate | 1.2 Gbps |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard drive | |
| Type | HDD |
| Capacity | 6 x 1.2 TB |
| Interface type | SAS 12Gb/s |
| Spindle Speed | 10000 rpm |
| Features | Dual Port, Enterprise |
| Hard Drive (2nd) | |
| Type | SSD |
| Capacity | 2 x 400 GB |
| Interface type | SAS 12Gb/s |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 14 (free) - 2.5" SFF |
| Interfaces | 2 x SAS 12Gb/s 2 x management 2 x management - RJ-45 8 x SAS 12Gb/s |
| System requirements | |
| OS Required | HP-UX, Red Hat Linux, Apple MacOS X, SUSE Linux Enterprise Server, HP OpenVMS, Microsoft Windows Server 2008 R2, Oracle Solaris, Microsoft Windows Server 2012 |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, GS, EN55022 Class A, CCC, ICES-003 Class A, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, K60950-1, KN22 Class A, China RoHS, AS/NZS CISPR 22, EN61000-3-2, EN61000-3-3, EN 55024 Class A, CNS 13438 Class A |
| Manufacturer Selling Program | HPE Top Value Lite |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission | 55 dBA |
