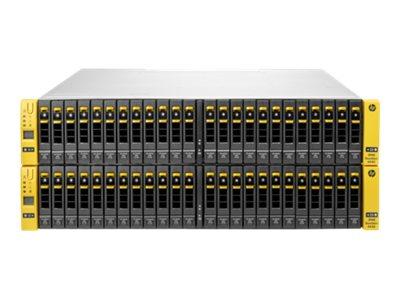

HPE 3PAR StoreServ 8440 4-node Storage Base - Hard drive array - 48 bays (SAS) - 16Gb Fibre Channel (external) - rack-mountable - 4U - field
€162217.58
- Brand
- Hewlett Packard Enterprise
- Product code
- H6Z13B
- SKU
- 74WRU5Y1EFA9M
- Greatly cut the capacity requirements with the featured data compaction technologies
- Simplify storage management and reduce footprint by with unified block and file
- Eliminate bottlenecks with a flash-optimized, scale-out architecture
- Ensure service levels with QoS optimization and consistent, sub-millisecond latency
- Support mixed workloads and accelerate performance
- Boost flash performance and reduce latency
- Maintain high availability and Tier-1 resiliency with a complete set of persistent technologies
- Achieve near-synchronous RPOs with flexible, transparent, model-agnostic remote replication
- Simplify backup and restores with application-aware, storage-integrated data protection
- Eliminate complexity with iSCSI for Ethernet and speed configuration with automated storage networking
- Optimize storage at the data center level with seamless data movement between arrays
| General | |
|---|---|
| Device type | Hard drive array |
| Enclosure Type | Rack-mountable - 4U |
| Chassis | |
| Supported Devices / Modules Qty | 48 |
| Supported Drives | SAS |
| Storage | |
| HDD Array External Interface | 16Gb Fibre Channel |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 4 |
| Interface type | SAS |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6 |
| Storage Controller (2nd) | |
| Installed Qty | 4 |
| Expansion / Connectivity | |
| Expansion Bays | 48 (total) / 48 (free) - 2.5" SFF |
| Expansion slots | 4 (total) / 4 (free) x PCIe |
| Interfaces | 8 x 16Gb Fibre Channel - SFP (mini-GBIC) 1 x Ethernet 1000 (management) |
| Miscellaneous | |
| Cables included | 4 x SAS cable - 2 m |
| Software included | HPE 3PAR Operating System Software Suite, HPE 3PAR Virtual Copy, HPE 3PAR Adaptive Optimization, HPE 3PAR Dynamic Optimization, HPE 3PAR Priority Optimization, HPE 3PAR Virtual Domains, HPE 3PAR Virtual Lock, HPE 3PAR Online Import, HPE 3PAR File Persona, HPE 3PAR Recovery Manager Central (RMC), HPE 3PAR Smart SAN |
| Compliant Standards | FCC Class A certified, C-Tick, VCCI Class A ITE, RoHS, EN 60950-1, IC Class A, UL 60950-1 Second Edition, KCC, WEEE, FCC CFR47 Part 15 B, GOST-R, cTUVus, TUV T, BSMI Class A, IEC 61000-3-3:2008, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, China RoHS, EN 62479:2010, CNS13438:2006, CNS 14336, EN55022:2010 Class A, IEC 60950-1:2005 Second Edition, IEC 61000-3-2:2005, CISPR 24:2010, EN 55024:2010, ICES-003 issue 5 Class A, CISPR 22:2008, CAN/CSA-C22.2 No. 60950-1 |
| Pricing Type | Field installation |
| Included Accessories | 2 x rail kit, 8x 16Gb Short Wave FC SFP transceivers |
| Dimensions & Weight | |
| Width | 48.3 cm |
| Depth | 67.61 cm |
| Height | 17.59 cm |
| Weight | 45.3 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
