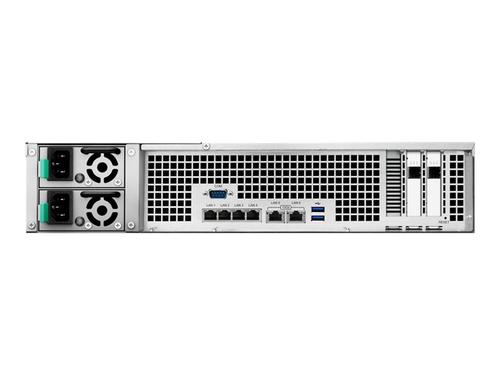

Synology FlashStation FS2017
Synology FlashStation FS2017 - NAS server - 24 bays - rack-mountable - RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 - RAM 16 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U
- Brand
- Synology
- Product code
- FS2017
- SKU
- AOXMD5D9025PA
- EAN/GTIN
- 4711174722686
- Snapshot replication provides schedulable and storage capacity-saving data protection
- File or folder level data restoration makes data recovery fast and flexible
- Automatic file self-healing detects and recovers corrupted files without user intervention
€6958.68
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total storage capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Width | 48.2 cm |
| Depth | 72.4 cm |
| Height | 8.8 cm |
| Weight | 14.9 kg () |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon D-1541 2.1 GHz |
| Number of Cores | 8-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.7 GHz |
| RAM | 16 GB (installed) / 128 GB (supported) - DDR4 |
| Features | ECC |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1 |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, iSCSI |
| Network / Transport Protocol | iSCSI, SMB |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Network Services Compatibility | Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV) |
| Performance | iSCSI 4K random write IOPS:up to 90000 |
| Features | Wake on LAN (WOL), High Availability, anti-malware protection, Access Control List (ACL) support, FTP server, reset button, bandwidth control, Traffic Control, e-mail notification, VPN Server, Link Aggregation, failover protection, OpenStack compatible, Disaster Recovery technology, B-tree file system (Btrfs), EXT4 file system, iSCSI LUN clone/snapshot, Windows ODX, cloud station server, MailPlus server, L2TP support |
| Encryption Algorithm | AES-NI |
| Security DVR | |
| IP Cameras Supported | 100 |
| Compression Format | MJPEG, H.264, H.265 |
| Image Resolution | 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160 |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" |
| Expansion slots | 1 (total) / 1 (free) x PCI Express 3.0 x8 4 (total) / 3 (free) x DIMM 288-pin |
| Interfaces | 4 x Ethernet 1000Base-T - RJ-45 2 x USB 3.0 - Type A 1 x serial - DB-9 2 x Ethernet 10Gb - RJ-45 |
| Miscellaneous | |
| Features | Automatic fan speed control, hardware encryption, scheduled power on/off, S.M.A.R.T. support, 4 hot-swappable fans |
| Compliant Standards | FCC Class A certified, RoHS, BSMI Class A |
| Included Accessories | Accessory pack |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 500 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 5 - 95% RH |
