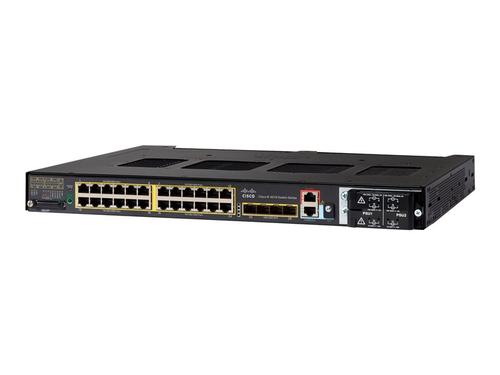

Cisco Industrial Ethernet 4010 Series

IE-4010-4S24P= - 882658945526

Cisco Industrial Ethernet 4010 Series - Switch - Managed - 24 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) - DIN rail mountable - TAA Compliant

Brand: Cisco IOT
Product code: IE-4010-4S24P=
SKU: VR1TFXVLX4V4J
EAN/GTIN: 882658945526

Robust industrial design
User-friendly GUI device manager
Swap drive - zero- config replacement
High-density industrial Power over Ethernet (PoE/PoE+)
Complete Gigabit Ethernet switch

€10799.11 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Specifications

General

Device type Switch - 28 ports - Managed

Enclosure Type DIN rail mountable 1U

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink)

Performance Forwarding bandwidth:28 Gbps Switching bandwidth:56 Gbps

Capacity Virtual interfaces (VLANs):1000 IGMP groups:1000 NAT translations:128

MAC Address Table Size 16K entries

Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing

Remote Management Protocol SNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCP

Encryption Algorithm FIPS 140-2

Authentication method RADIUS, TACACS

Features NAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, Storm Control, PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588)

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 1588v2, IEEE 1613

RAM 1 GB

Flash memory 128 MB

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 4 x SFP uplink 1 x console RJ-45 1 x mini-USB Type B

Expansion slots 1 (total) / 0 (free) x SD Memory Card

Miscellaneous

Included Accessories 1 GB SD card

MTBF 429,620 hours

Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223

TAA Compliant Yes

Software / System Requirements

Software included Cisco IOS LAN Base

Dimensions & Weight

Width 44.5 cm

Depth 35.6 cm

Height 4.45 cm

Weight 5.46 kg

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - 5 years - response time:10 days

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 75 °C

Humidity Range Operating 5 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 85 °C
