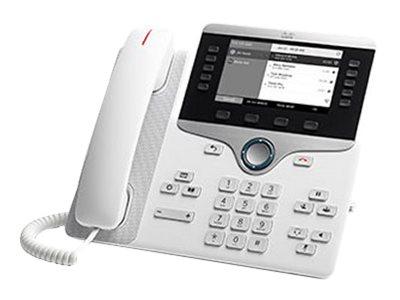

Cisco IP Phone 8811 - VoIP phone - SIP, RTCP, RTP, SRTP, SDP - 5 lines - white
- Brand
- Cisco
- Product code
- CP-8811-W-K9=
- SKU
- KAN0QAXQDKEDZ
- ERGONOMIC DESIGN
- Graphical display
- Handset
- Speaker phone
- Analog headset
- AUX port
- Ethernet switch
- Backlit indicator
- Dual-position foot stand
- Physical security
Description
Backlit indicator
The phone supports backlit indicators for the audio path keys (handset, headset, and speakerphone), select key, line keys, and message waiting.
Ergonomic design
The phone offers an easy-to-use interface and provides a traditional telephony-like user experience.
Graphical display
The 5-in., 800 × 480 resolution, grayscale display provides scrollable access to calling features and text-based XML applications.
Handset
The handset is a standard wideband-capable audio handset (connects through an RJ-9 port).
Speaker phone
The full-duplex speakerphone gives you flexibility in placing and receiving calls with hands free.
Analog headset
The analog headset jack is a standard wideband-capable RJ-9 audio port.
AUX port
You can use an auxiliary port to support electronic hookswitch control with a third-party headset connected to it.
Ethernet switch
An internal 2-port Cisco Ethernet switch allows for a direct connection to a 10/100/1000BASE-T Ethernet network through an RJ-45 interface with single LAN connectivity for both the phone and a co-located PC.
Dual-position foot stand
The display is easy-to-view and the buttons and keys are easy-to-use. The two-position foot stand supports viewing angles of 35 and 50 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone.
Physical security
The phone is compatible with the Kensington Security Slot (K-Slot) antitheft system.
| General | |
|---|---|
| Product type | VoIP phone |
| Compatible Platforms | Cisco Business Edition 6000 |
| Body Colour | White |
| Image Colour Disclaimer | The displayed product image may be a different colour |
| Body Material | ABS plastic |
| Phone Features | |
| Call Services | Voice Mail, Caller ID, Call Waiting, Call Forwarding, Call Transfer, Call Hold, Message Waiting Capability |
| Dialer Type | Keypad |
| Dialer Location | Base |
| Conference Call Capability | Yes |
| Intercom | Yes |
| Speakerphone | Yes (digital duplex) |
| Menu Operation | Yes |
| Programmable Buttons Qty | 5 |
| Indicators | Voice message waiting indicator, speakerphone indicator, headset |
| Firmware Upgradable | Yes |
| Additional Functions | Call timer, Intercom |
| Additional features | Music on hold, BLF status lamps |
| IP Telephony | |
| Main Features | Multiple VoIP protocol support, integrated Ethernet switch |
| VoIP | Yes |
| VoIP protocols | SIP, RTCP, RTP, SRTP, SDP |
| Voice codecs | G.722, G.729a, G.711u, G.711a, iLBC, iSAC |
| Lines Supported | 5 lines |
| Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p |
| Security | IEEE 802.1X, TLS |
| Power Over Ethernet (PoE) Support | Yes |
| Network Protocols | IP, TFTP, UDP, Cisco Discovery Protocol (CDP), HTTP, DNS, HTTPS, SRTP, Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED), RTCP, RTP |
| Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T |
| Compatible Software | Cisco Unified Communications Manager 8.5.1 or later, Cisco Hosted Collaboration Solution, Cisco Unified Communications Manager Express 10.0 or later |
| Network Features | Class 2 PoE |
| Display | |
| Type | LCD display - monochrome |
| Display Location | Base |
| Diagonal Size | 5" |
| Display resolution | 800 x 480 pixels |
| Backlit | Yes |
| Display Languages | Danish, Hebrew, Hungarian, Czech, Croatian, Slovenian, Thai, Slovak, Brazilian Portuguese, English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Turkish, Arabic, Bulgarian, Latvian, Lithuanian, Estonian, Serbian, Romanian, Catalan, Japanese, Chinese, Korean |
| Miscellaneous | |
| Connections | Headset jack / RJ-9 Electronic hook switch (EHS) |
| Hearing Aid Compatible | Yes |
| Placing / Mounting | Wall-mountable, table mount |
| Compliant Standards | ADA, HAC (Hearing Aid Compatible) |
| Dimensions & Weight (Base) | |
| Width | 25.734 cm |
| Depth | 4 cm |
| Height | 22.91 cm |
| Weight | 1.17 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
