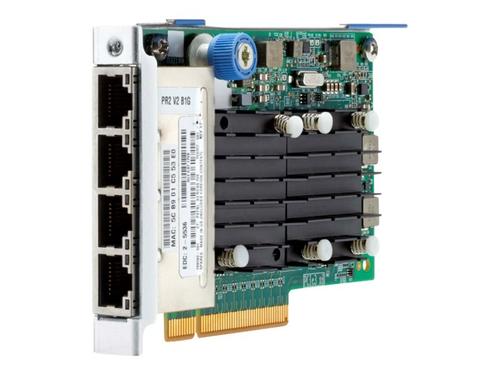

HPE FlexFabric 536FLR-T
HPE FlexFabric 536FLR-T - Network adapter - PCIe 3.0 x8 - 10Gb Ethernet x 4 - for ProLiant DL360 Gen10, DL360 Gen9
- Brand
- Hewlett Packard Enterprise
- Product code
- 764302-B21
- SKU
- YLYHJPHJ5I9RI
- EAN/GTIN
- 4514953714434
- Accelerates server performance
- Robust virtualization capabilities
- Increase networking flexibility
€1893.47
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Accelerates server performance
The HPE FlexFabric 10Gb 4-port 536FLR-T Adapter boosts network performance with full line-rate 10 GbE throughput across four ports and achieves higher throughput performance and free CPU cycles for other operations.
Robust virtualization capabilities
The HPE FlexFabric 10Gb 4-port 536FLR-T Adapter delivers single Root I/O Virtualization (SR-IOV) support to allow multiple operating systems to share a physical interconnect and enhances network management and efficiency with support for VLAN tagging.
Increase networking flexibility
The HPE FlexFabric 10Gb 4-port 536FLR-T Adapter enables administrators to configure a 10Gb adapter as four separate partitions or physical functions. Eliminate multiple network adapters and cables consolidating multiple connections on to one network adapter.
| General | |
|---|---|
| Device type | Network adapter |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Networking | |
| Ports | 10Gb Ethernet x 4 |
| Connectivity technology | Wired |
| Cabling type | Ethernet 10GBase-T |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data transfer rate | 10 Gbps |
| Capacity | Jumbo frame size:up to 9 KB |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Remote Management Protocol | SNMP |
| Status Indicators | Status, link/activity |
| Features | IPv6 support, PXE support, LSO, RSS, SR-IOV, TSO, TCP Offload Engine (TOE), PTP, TCP/IP checksum offload, UDP/IP checksum offload |
| Compliant Standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x |
| Processor / Memory | |
| Processor | 1 x Qlogic 57840S |
| Expansion / Connectivity | |
| Interfaces | 4 x 10GBase-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, BSMI, FCC Part 15, RoHS, EN 61000-3-2:2006, KN24, EN 61000-3-2:2008, KN22 Class A, VCCI V-3/2010.04 Class A, ICES-003 issue 4, EN 55022:2006+A1:2007 Class A, EN55024:1998, CNS 13438 Class A |
| Software / System Requirements | |
| OS Required | Oracle Solaris 11.1, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows Server 2008 R2 SP1 (64-bits), SUSE Linux Enterprise Server 12 x64 Edition, Citrix XenServer 6.5, Ubuntu 12.04.5 LTS, Oracle Solaris 11.2, Microsoft Windows Server 2012 R2 with Hyper-V (64-bit), VMware ESXi 5.5 update 3, SuSE Linux Enterprise Server 11 SP4 x64 Edition, Red Hat Enterprise Linux 6.7 (64-bit), Red Hat Enterprise Linux 7.2 (64-bit), VMware ESXi 6.0 update 1 or later, Citrix XenServer 7.0, Ubuntu Linux 14.04.2 LTS |
| Dimensions & Weight | |
| Width | 1.49 cm |
| Depth | 11.93 cm |
| Height | 7 cm |
| Weight | 120 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Apollo 4200 Gen9 for Google HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 HPE ProLiant DL120 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL360 Gen9 High Performance, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL385 Gen10 SMB, DL385 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen9 SAP HANA Scale-out Base Configuration, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10 for HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL450 Gen10 200TB Server for Cohesity DataPlatform, XL450 Gen10 400TB Server for Cohesity DataPlatform, XL450 Gen10 700TB Server for Cohesity DataPlatform HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node |
