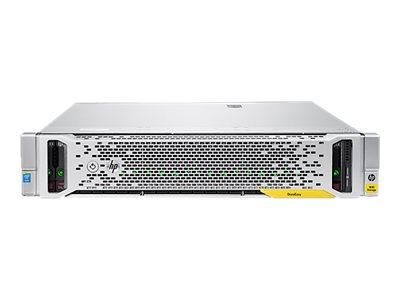

HPE StoreEasy 1850
K2R21A - 4514953857469
HPE StoreEasy 1850 - NAS server - 24 bays - 14.4 TB - rack-mountable - SATA 6Gb/s / SAS 12Gb/s - HDD 1.8 TB x 8 - RAID RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM - RAM 16 GB - Gigabit Ethernet - iSCSI support - 2U
- Brand
- Hewlett Packard Enterprise
- Product code
- K2R21A
- SKU
- 4ZUYJ5BNAUUOO
- EAN/GTIN
- 4514953857469
€20653.62
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Specifications
General
Device type
NAS server
Host Connectivity
Gigabit Ethernet
Enclosure Type
Rack-mountable - 2U
Total storage capacity
14.4 TB
Installed Devices / Modules Qty
8 (installed) / 24 (max)
Width
44.55 cm
Depth
67.94 cm
Height
8.73 cm
Weight
14.759 kg ()
Processor / Memory
Processors Installed
1 x Intel Xeon E5-2609V3 1.9 GHz
Number of Cores
6-core
Max Supported Qty
2
RAM
16 GB DDR4
Features
Registered, single rank
Storage Controller
Type
RAID
Interface type
SATA 6Gb/s / SAS 12Gb/s
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Hard drive
Type
HDD - 2.5" SFF
Capacity
8 x 1.8 TB
Interface type
SAS 12Gb/s
Data transfer rate
1.2 Gbps
Spindle Speed
10000 rpm
Features
Advanced format 512e, Enterprise
Networking
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Network / Transport Protocol
iSCSI
Network Services Compatibility
DNS, DHCP, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion / Connectivity
Expansion Bays
24 (total) / 16 (free) x hot-swap - 2.5" SFF 2 (total) / 0 (free) - 2.5" SFF
Expansion slots
2 (total) / 2 (free) x PCI Express 3.0 x16 (half-length, full-height) 1 (total) / 1 (free) x PCI Express 3.0 x8 (half-length, full-height) 24 (total) / 22 (free) x DIMM 240-pin 2 (total) / 1 (free) x CPU
Interfaces
4 x Ethernet 1000Base-T - RJ-45 3 x USB 3.0 1 x VGA
Miscellaneous
Compliant Standards
FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438, K22, K24
Included Accessories
Rack mounting kit, cable management arm
Power
Power Device
Internal power supply - hot-plug
Installed Qty
2
Max Supported Qty
2
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
800 Watt
80 PLUS certification
80 PLUS Platinum
Software / System Requirements
Storage Operating System
Microsoft Windows Storage Server 2012 R2
Software included
HPE iLO Advanced 1yr 24x7 Technical Support and Updates Single Server License
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time:next business day
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
8 - 90% (non-condensing)
Sound Emission
23 dBA
