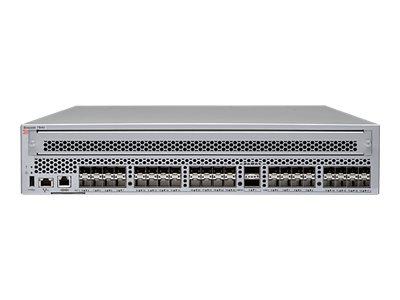

HPE StoreFabric SN4000B Power Pack+ SAN Extension Switch
E7Y73B - 0190017009667
HPE StoreFabric SN4000B Power Pack+ SAN Extension Switch - Switch - Managed - 24 x 16Gb Fibre Channel SFP+ + 16 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 40 Gigabit QSFP+ - back to front airflow - rack-mountable
- Brand
- Hewlett Packard Enterprise
- Product code
- E7Y73B
- SKU
- 6M2E4410KRUUW
- EAN/GTIN
- 0190017009667
- High Performance
- Scalable and flexible SAN extension
- Simplified disaster recovery and data protection
€149846.36
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
High performance The HPE SN4000B moves more data faster and further. The HPE SN4000B advanced performance and network optimization enable replication and backup applications to send more data over metro and WAN links in less time and to optimize available WAN bandwidth. Scalable and flexible SAN extension The HPE SN4000B leverages cost effective IP WAN transport to extend open systems and mainframe disk and tape storage applications over distances that would typically be impractical. The HPE SN4000B provides flexibility and investment protection to add advanced extension, FICON, and SAN fabric services for evolving virtual server requirements. Simplified disaster recovery and data protection The HPE SN4000B supports simple point-to-point or comprehensive multisite SAN extension for a variety of strategic IT initiatives. The HPE SN4000B centralizes backup to consolidate infrastructure and administrative resources.| General | |
|---|---|
| Device type | Switch - 42 ports - Managed |
| Enclosure Type | Back to front airflow rack-mountable 2U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 24 x 16Gb Fibre Channel SFP+ + 16 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 40 Gigabit QSFP+ |
| Performance | Aggregate bandwidth:384 Gbps Fabric latency:700 ns |
| Capacity | Maximum frame size:2112 |
| Jumbo Frame Support | 9000 bytes |
| Fibre Channel | FC-AL, FC-AL-2, FC-FG, FC-FLA, FC-GS-2, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SW, FC-VI |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SMI-S, SSH-2 |
| Encryption Algorithm | SSL, 256-bit AES-GCM |
| Authentication method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, DH-CHAP |
| Features | IP address filtering, firmware upgradable, Quality of Service (QoS), Registered State Change Notification (RSCN) support |
| Expansion / Connectivity | |
| Interfaces | 24 x 16Gb Fibre Channel SFP+ 16 x Gigabit / 10Gbit LAN SFP+ 2 x 40Gbit LAN QSFP+ 1 x USB 1 x management (Gigabit LAN) RJ-45 1 x serial RJ-45 management |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | FIPS 140-2 Level 2, RoHS |
| Software / System Requirements | |
| Software included | Brocade Advanced Zoning, Brocade Fabric Watch, Brocade Advanced Performance Monitoring, Brocade Extended Fabrics, Brocade ISL Trunking, Brocade Advanced Web Tools, HP SAN Network Advisor Professional, Brocade Fabric Vision |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 60.9 cm |
| Height | 8.6 cm |
| Weight | 19 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site - response time:next business day |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
