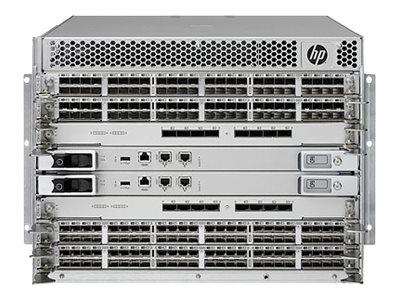

HPE StoreFabric SN8000B 4-Slot SAN Director Switch
HPE StoreFabric SN8000B 4-Slot SAN Director Switch - Switch - Managed - rack-mountable
- Brand
- Hewlett Packard Enterprise
- Product code
- QK712D
- SKU
- JWY8V05HP7Y53
- Improved performance
- Simplified management
- Optimizes business continuity and disaster recovery solutions
- Lower TCO
€96471.94
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Switch - Managed |
| Enclosure Type | Rack-mountable 9U |
| Subtype | Fibre Channel |
| Performance | Aggregate bandwidth:4 Tbps |
| Fibre Channel | FC-IP |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI |
| Encryption Algorithm | SSL, 256-bit AES-GCM |
| Authentication method | RADIUS, Secure Shell v.2 (SSH2), LDAP, DH-CHAP |
| Features | ISL support, Syslog support, IPv6 support, IP address filtering, Quality of Service (QoS), ISL Trunking |
| Expansion / Connectivity | |
| Interfaces | Management 1 x console RJ-45 2 x USB Type A |
| Expansion slots | 4 (total) / 4 (free) x Expansion Slot |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Included Accessories | 2 GB USB Flash Drive, rack rails kit, 2 control processors |
| Rack Mounting Kit | Included |
| Compliant Standards | APM, FIPS 140-2 Level 2, RoHS 2016 |
| Software / System Requirements | |
| Software included | Brocade Zoning, Enhanced Group Management, Webtools, HP SAN Network Advisor Professional, HP SAN Network Advisor Enterprise (Trial) |
| Dimensions & Weight | |
| Width | 43.74 cm |
| Depth | 73.2 cm |
| Height | 39.37 cm |
| Weight | 68 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 93% |
