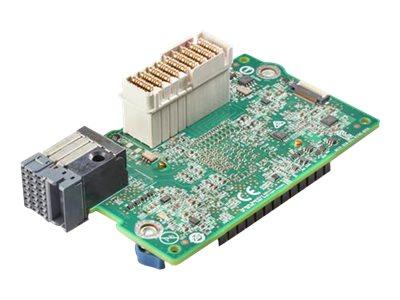

HPE Synergy 3820C
HPE Synergy 3820C - Network adapter - PCIe 3.0 x8 Mezzanine - 20 Gigabit CEE x 2 - for Synergy 480 Gen10, 480 Gen9, 620 Gen9, 660 Gen10, 660 Gen9, 680 Gen9
- Brand
- Hewlett Packard Enterprise
- Product code
- 777430-B21
- SKU
- FH3YNHG9O3YKM
- Delivers flexibility to compose multiple network flows
- Full hardware offload of FCoE and iSCSI storage protocol processing
- Converged Ethernet data and storage networks
- A single Type C mezzanine form factor provides flexible network and storage I/O
- Provides faster converged bi-directional Ethernet bandwidth
- Supports Tunnel Offload with NVGRE and VxLAN
- Hardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE)
- Orchestrates reliable adapter firmware updates
€926.17
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Network adapter |
| Form factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 Mezzanine |
| PCI Specification Revision | PCIe 3.0 |
| Networking | |
| Ports | 20 Gigabit CEE x 2 |
| Connectivity technology | Wired |
| Data Link Protocol | 20Gb Converged Enhanced Ethernet (CEE) |
| Data transfer rate | 20 Gbps |
| Capacity | Jumbo frame size:up to 9 KB |
| Features | VLAN support, QoS, VMDq, PXE support, LSO, SR-IOV, NPAR, TSO, checksum offload support, MSI-X, TCP Offload Engine (TOE), FCoE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.3ap |
| Processor / Memory | |
| Processor | 1 x Qlogic 57840S |
| RAM | 900 MB |
| Expansion / Connectivity | |
| Interfaces | 2 x 20Gb Ethernet |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, BSMI CNS 13438 Class A, RoHS, FCC Part 15 A, AS/NZS, KN24, KN22 Class A, VCCI V-3/2010.04 Class A, ICES-003 issue 4, EN 55022:2006+A1:2007 Class A, EN55024:1998 |
| Power | |
| Power Consumption Operational | 12 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, VMware ESXi 5.5, SuSE Linux Enterprise Server 12, Red Hat Enterprise Linux 6.7, SuSE Linux Enterprise Server 11 SP4, Red Hat Enterprise Linux 7.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Synergy 480 Gen10 Base Compute Module, 480 Gen10 Compute Module, 480 Gen10 Entry Compute Module, 480 Gen10 Performance Compute Module, 480 Gen10 Premium Backplane Compute Module, 480 Gen10 Standard BackPlane Compute Module, 480 Gen10 w/o Drives Compute Module, 480 Gen9 Compute Module, 480 Gen9 Expanded Storage Compute Module, 620 Gen9 2S-EX Base Compute Module, 620 Gen9 2S-EX Compute Module, 620 Gen9 2S-EX Performance Compute Module, 660 Gen10 Base Compute Module, 660 Gen10 Compute Module, 660 Gen10 Entry Compute Module, 660 Gen10 Performance Compute Module, 660 Gen10 Premium Compute Module, 660 Gen9 Base Compute Module, 660 Gen9 Compute Module, 660 Gen9 Entry Compute Module, 660 Gen9 Expanded Storage Compute Module, 660 Gen9 Performance Compute Module, 680 Gen9 4S-EX Base Compute Module, 680 Gen9 4S-EX Performance Compute Module HPE Synergy 12000 Frame |
