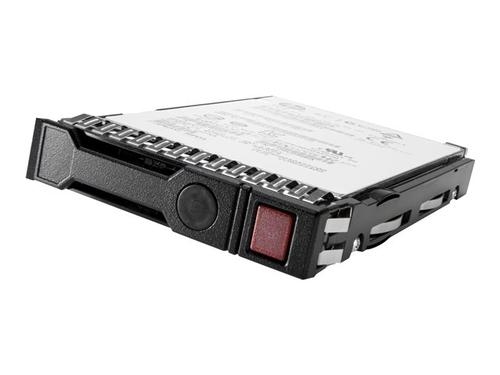

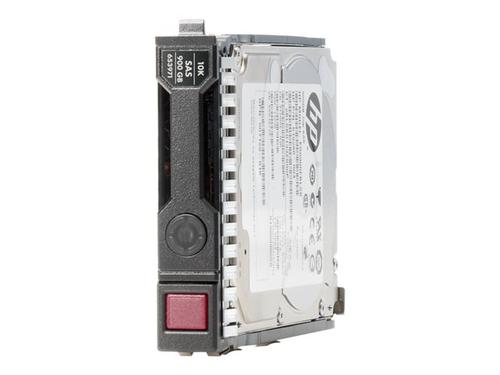

HPE Midline - Hard drive - 1 TB - hot-swap - 2.5" SFF - SAS 12Gb/s - 7200 rpm - with HP SmartDrive carrier
- Brand
- Hewlett Packard Enterprise
- Product code
- 832514-B21
- SKU
- EWSE7IF9N3QGN
- EAN/GTIN
- 4514953947412
- Hard drive
- 1 TB
- hot-swap
- 2.5" SFF
- SAS 12Gb/s
- 7200 rpm
- with HP SmartDrive carrier
- Weight: 0.42 KG
Product Info
HPE Server Midline hard drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements.
All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline hard drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.
Description
Smart carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.
Helium drives
Although hard drives are sealed, they have air inside. Air can create turbulence-induced risk vibrations which can limit the storage density of HDDs. Newer helium-filled drives virtually eliminate turbulence because helium is 1/7th as dense as air. This lower density allows the read/write mechanism to spin more easily and precisely, with less drag. Less internal turbulence means the drive platters can be closer together, allowing more platters and increasing the capacity potential in the same space. Less turbulence also means helium drives tend to use less power, and run cooler and quieter.
| General | |
|---|---|
| Device Type | Hard drive - hot-swap |
| Bytes per Sector | 512 |
| Height | 15.6 mm |
| Capacity | 1 TB |
| Depth | 118.7 mm |
| Form Factor | 2.5" SFF |
| Bundled with | HP SmartDrive carrier |
| Width | 75.7 mm |
| Interface | SAS 12Gb/s |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Performance | |
| Spindle Speed | 7200 rpm |
| Track-to-Track Seek Time | 0.5 ms |
| Drive Transfer Rate | 1.2 GBps (external) |
| Seek Time | 6.8 ms (average) / 17 ms (max) |
| Compatibility Information | |
| Designed For | HPE Apollo 4200 Gen9 for Google (2.5")HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (2.5"), Medium Solution with HPE ProLiant DL360 Gen10 (2.5"), Small Solution with HPE ProLiant DL360 Gen10 (2.5")HPE ProLiant DL180 Gen10 Entry (2.5"), DL180 Gen10 SMB (2.5"), DL20 Gen10 (2.5"), DL20 Gen10 Entry (2.5"), DL20 Gen10 Performance (2.5"), DL20 Gen10 Plus (2.5"), DL20 Gen10 Plus Base (2.5"), DL20 Gen10 Plus Entry (2.5"), DL20 Gen10 Plus High Performance (2.5"), DL20 Gen10 Plus Performance (2.5"), DL20 Gen10 solution (2.5"), DL325 Gen10 Base (2.5"), DL325 Gen10 Plus (2.5"), DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage (2.5"), DL325 Gen10 Plus for Weka Expansion Tracking (2.5"), DL325 Gen10 Solution (2.5"), DL360 Gen10 Compute Server for Cohesity DataPlatform (2.5"), DL360 Gen10 Network Choice (2.5"), DL360 Gen10 Performance for Cohesity DataPlatform (2.5"), DL360 Gen10 SMB (2.5"), DL360 Gen10 SMB Network Choice (2.5"), DL380 Gen10 All Flash Server for Datera (2.5"), DL380 Gen10 Entry SMB (2.5"), DL380 Gen10 for Cohesity DataPlatform (2.5"), DL380 Gen10 for SAP HANA Compute Block (2.5"), DL380 Gen10 Hybrid Server for Datera (2.5"), DL380 Gen10 Network Choice (2.5"), DL380 Gen10 Network Choice for CTERA (2.5"), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5"), DL380 Gen10 Server for CTERA (2.5"), DL380 Gen10 SMB (2.5"), DL380 Gen10 SMB Networking Choice (2.5"), DL380 Gen10 Solution (2.5"), DL385 Gen10 Plus (2.5"), DL385 Gen10 Plus Entry (2.5"), DL385 Gen10 SMB (2.5"), DL388 Gen10 (2.5"), DL560 Gen10 for SAP HANA Compute Block (2.5"), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5"), ML30 Gen10 (2.5"), ML30 Gen10 Entry (2.5"), ML30 Gen10 Performance (2.5"), ML30 Gen10 Solution (2.5"), ML350 Gen10 High Performance (2.5"), ML350 Gen10 SMB (2.5"), ML350 Gen10 Special Server (2.5")HPE Synergy 480 Gen10 Plus Base Compute Module (2.5") |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" SFF |
| Interfaces | 1 x SAS 12 Gb/s |
