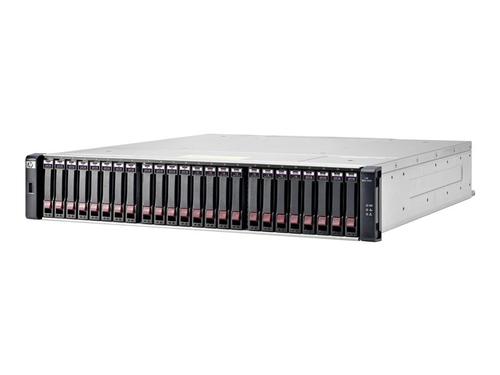

HPE Modular Smart Array 1040 Dual Controller SFF Bundle - Hard drive array - 2.4 TB - 24 bays (SAS-3) - HDD 600 GB x 4 - SAS 12Gb/s (external) - rack-mountable - 2U - Top Value Lite
€5840.97
- Brand
- Hewlett Packard Enterprise
- Product code
- P8Y79A
- SKU
- I7M2XSH658LYE
- Simple: flexible architecture, easy to setup, easy to manage
- Affordable: popular iSCSI/Fiber Channel configurations
- Fast: the MSA 1040 delivers up to 50% more performance
Sold Out
Description
Fast:the MSA 1040 delivers up to 50% more performance compared to P2000 G3
The MSA 1040 leverages the 4th generation MSA architecture, 2-port controllers with 4 GB cache each, faster processor and a performance optimized I/O engine. Increased performance translates into better application response times and facilitates entry consolidation and virtualization initiatives.
Simple:flexible architecture, easy to manage, easy to setup
On-board management tools augment OS and hypervisor views navigate firmware upgrades, monitor array performance with ease locally or remotely. The integrated setup and management Web-based Interface (WBI) makes MSA easy to manage for ProLiant/BladeSystems administrators and IT generalists.
| General | |
|---|---|
| Device type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 4 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Storage | |
| Total Array Capacity | 2.4 TB |
| Max Supported Capacity | 43.2 TB |
| HDD Array External Interface | SAS 12Gb/s |
| Maximum LUNs | 512 |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface type | SAS 6Gb/s |
| Cache / Buffer Size (Max) | 8 GB |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard drive | |
| Type | HDD |
| Capacity | 4 x 600 GB |
| Interface type | SAS 12Gb/s |
| Spindle Speed | 10000 rpm |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 20 (free) x hot-swap - 2.5" SFF |
| Interfaces | 4 x SAS 12Gb/s 2 x USB (management) 2 x Ethernet 1000Base-T (management) - RJ-45 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| System requirements | |
| OS Required | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 |
| Miscellaneous | |
| Features | Firmware upgradable |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, FCC Part 15, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, WEEE, RoHS, EN55024 Class A, VCCI Class A, KN24, KN22 Class A, China RoHS, CNS 13438 |
| Manufacturer Selling Program | HP Top Value Lite |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Consumption Operational | 337 Watt |
| Dimensions & Weight | |
| Width | 44.7 cm |
| Depth | 49.5 cm |
| Height | 8.9 cm |
| Weight | 26 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission | 55 dBA |
