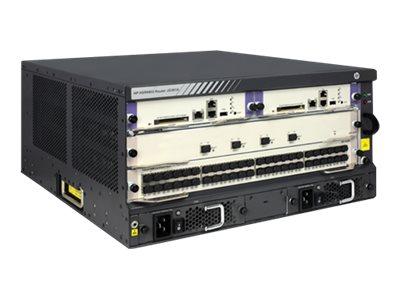

HP HSR6802 Router Chassis
- Brand
- Hewlett Packard Enterprise
- Product code
- JG361B
- SKU
- 2SAS52RMTEFRA
- EAN/GTIN
- 888793434734
- Multiple WAN interfaces
- Flexible port selection
- High Performance
- Provide greater flexibility
- Virtual Router Redundancy Protocol (VRRP)
- Graceful restart
- Distributed processing
- HPE Apollo processor
Description
Multiple WAN interfaces
Support Fast Ethernet/Gigabit Ethernet/10GbE ports, OC3 - OC48 POS/CPOS, and ATM ports.
Flexible port selection
Provides a combination of fiber/copper interface modules, 100/1000BASE-X auto-speed selection, and 10/100/1000BASE-T auto-speed detection plus auto duplex and MDI/MDI-X; is speed adaptable between 155 M POS/622 M.
POS/Gigabit Ethernet
Supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility.
Performance
High-performance platform:provides up to 420 Mpps in forwarding and up to 2 Tbps switching capacity.
Provide greater flexibility
Hot-swappable modules facilitate the replacement of hardware interface modules without impacting the traffic flow through the system.
Virtual router redundancy protocol (VRRP)
Allows groups of two routers to dynamically back each other up to create highly available routed environments.
Graceful restart
Features are fully supported, including graceful restart for OSPF, IS-IS, BGP, LDP, and RSVP; the network remains stable during the active-standby switchover; after the switchover, the device quickly learns the network routes by communicating with adjacent routers; forwarding remains uninterrupted during the switchover to achieve nonstop forwarding (NSF).
Distributed processing
Two kinds of engines are hardware-separated:main controller engine (routing engine) and service engines (flexible interface platform FIP and service aggregation platform SAP); the main controller engine is used for route computing and system management, and service engines are used for processing services.
HPE Apollo processor
HPE in-house designed service/forwarding processor support powerful parallel processing, encryption and comprehensive HQoS functionalities.
| General | |
|---|---|
| Device type | Modular expansion base |
| Enclosure Type | Rack-mountable - modular - 5U |
| Connectivity technology | Wired |
| Performance | Throughput:up to 120 Mpps Backplane speed:1024 Gbps |
| Capacity | IPv4 routing table entries:4000000 IPv6 routing table entries:2000000 IPv4 forwarding table entries:1000000 IPv6 forwarding table entries:1000000 |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI |
| Encryption Algorithm | MD5, SSL, TLS |
| Authentication method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1AX, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, AS/NZS 60950, EN 60825-2, VCCI V-3 Class A ITE, VCCI V-4, KN22, KN24, EN 301 489-1, EN 300 386, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17 |
| Processor | 1 x PowerPC 1 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash memory | 1 GB (installed) / 2 GB (max) |
| Expansion / Connectivity | |
| Interfaces | Management:1 x RJ-45 Management:1 x RS-232C |
| Expansion slots | 2 (total) / 2 (free) x expansion slot 8 (total) / 8 (free) x Multifunction Interface Module (MIM) 2 (total) / 1 (free) x CompactFlash |
| Installed Modules Qty (Max) | 0 |
| Power | |
| Power Device | Internal power supply (not installed) - hot-plug |
| Power Redundancy | Optional |
| Installed Qty | 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 521 Watt |
| Dimensions & Weight | |
| Width | 43.6 cm |
| Depth | 48 cm |
| Height | 22 cm |
| Weight | 22.75 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% |
