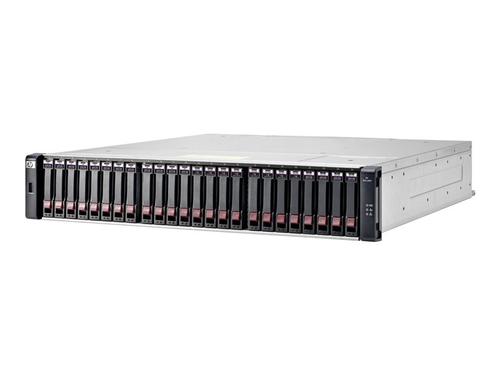

HPE Modular Smart Array 2040 SAS Dual Controller SFF Bundle

M0T28A - 8592978062712

HP MSA 2040 SAS 6x900 Bndl/TVlite

Brand: Hewlett Packard Enterprise
Product code: M0T28A
SKU: B3UAP0368S1E6
EAN/GTIN: 8592978062712

The integrated setup and management tools for MSA are easy to manage for ProLiant/BladeSystems IT managers
High-performance converged SAN controller and SAS controller offer 4x the performance of the other entry-level SAN arrays
4-port converged SAN controller supporting fiber channel and iSCSI and a SAS controller with 4 GB cache translating into better application response time and ability to support more virtualized environments
SSD support with integrated "wear gauge" helps improves application performance and allows customers to reduce their operating costs by reducing foot prints and power consumptions
The 4th generation of MSA's unique data-in-place upgrades provides investment protection

€8809.29 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Specifications

General

Device type Hard drive array

Enclosure Type Rack-mountable - 2U

Chassis

Installed Devices / Modules Qty 6

Supported Devices / Modules Qty 24

Supported Drives SAS-3

Storage

Total Array Capacity 5.4 TB

Max Supported Capacity 43 TB

HDD Array External Interface SAS 12Gb/s

Maximum LUNs 512

Processor

CPU No CPU

Storage Controller

Type RAID

Installed Qty 2

Interface type SAS 6Gb/s

Data transfer rate 600 Mbps

Cache / Buffer Size (Max) 8 GB

RAID Level RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50

Storage Controller (2nd)

Installed Qty 2

Hard drive

Type HDD

Capacity 6 x 900 GB

Spindle Speed 10000 rpm

Expansion / Connectivity

Expansion Bays 24 (total) / 18 (free) - 2.5" SFF

Interfaces 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) 2 x management 2 x management - RJ-45 8 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644)

System requirements

OS Required HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012

Miscellaneous

Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A

Manufacturer Selling Program HP Top Value Lite

Power

Power Device 2 x internal power supply - hot-plug

Max Supported Qty 2

Power Redundancy Yes

Power Redundancy Scheme 1+1

Voltage Required AC 120/230 V - 50/60 Hz

Dimensions & Weight

Width 44.7 cm

Depth 49.5 cm

Height 8.9 cm

Manufacturer Warranty

Service & Support Limited warranty - parts - 3 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90% (non-condensing)

Sound Emission 55 dBA
