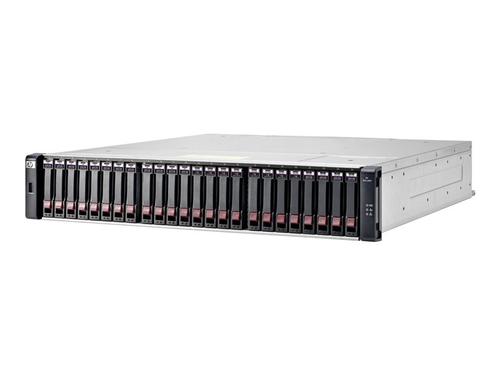

HPE Modular Smart Array 2040 SAN Dual Controller SFF Bundle
HP MSA 2040 SAN 6x600 no SFP Bndl/TVlite
- Brand
- Hewlett Packard Enterprise
- Product code
- M0T25A
- SKU
- RSXM7M0VPDCP4
- Battery-free cache backup with super capacitors and compact flash
- MSA 2040 supports SSD drives which allow IT managers to boost IOPS performance by more than 2x that of a similar volume located on traditional spinning HDDs
- Ease of management featuring browser-based out-of-band access - his allows a department or small company to effectively handle growing storage requirements, with the aid of an intuitive GUI to administer the unit with a minimum of complexity
- MSA 2040 comes standard with 64 controller-based snapshots and clone capability
€7629.12
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 6 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Storage | |
| Total Array Capacity | 3.6 TB |
| Max Supported Capacity | 43 TB |
| HDD Array External Interface | 8Gb Fibre Channel, iSCSI (1 GbE), iSCSI (10 GbE), 16Gb Fibre Channel |
| Maximum LUNs | 512 |
| Processor | |
| CPU | No CPU |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface type | SAS 6Gb/s |
| Data transfer rate | 600 Mbps |
| Cache / Buffer Size (Max) | 8 GB |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard drive | |
| Type | HDD |
| Capacity | 6 x 600 GB |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 18 (free) - 2.5" SFF |
| Interfaces | 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) 2 x management 2 x management - RJ-45 8 x 8Gb Fibre Channel / 16Gb Fibre Channel / Ethernet 10Gb / Ethernet 1000 - SFP+ |
| System requirements | |
| OS Required | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A |
| Manufacturer Selling Program | HP Top Value Lite |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Dimensions & Weight | |
| Width | 44.7 cm |
| Depth | 49.5 cm |
| Height | 8.9 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission | 55 dBA |
