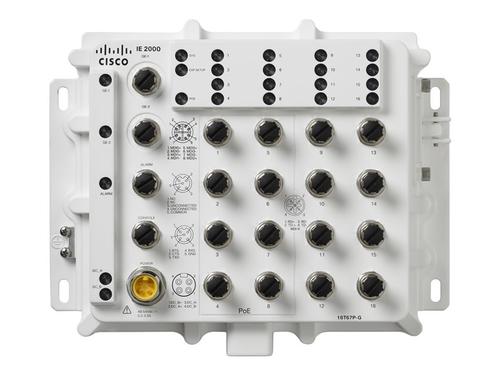

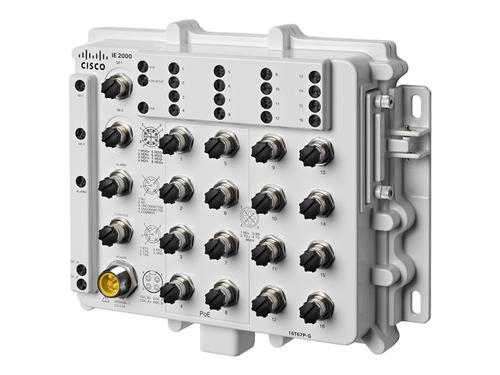

Cisco Industrial Ethernet 2000 IP67 Series - Switch - Managed - 16 x 10/100 (PoE+) + 2 x 10/100/1000 - wall-mountable - PoE+
- Brand
- Cisco IOT
- Product code
- IE-2000-16T67P-G-E
- SKU
- 644U75CB93D45
- EAN/GTIN
- 882658623448
- Certified IP67 rating
- Compliant with industrial automation standards
- Easy deployment
- Resiliency
- Manageability
- Network address translation (NAT)
- Industrial power-over-Ethernet (PoE)
- Removable SD Flash memory
Description
Removable SD Flash memory
With tightly secured swappable hard drives, you can quickly replace switches in the field with minimal disruption.
Certified IP67 rating
The solution is IP67-rated to protect against dust and submersion in water. It meets the most rigorous industrial and safety standards for extreme temperature and vibration, humidity, electromagnetic emissions, and other factors.
Compliant with industrial automation standards
The rugged switch supports Common Industrial Protocol (CIP) and the PROFINET v2 standard, so you can easily integrate it with any Ethernet-based industrial equipment and management system. It also supports Precision Timing Protocol (PTP) v2 for demanding synchronized applications.
Easy deployment
With zero-touch discovery using Dynamic Host Control Protocol (DHCP), express setup, and sub-60-second boot-up times, you can easily migrate to all-IP-over-Ethernet networking environment.
Resiliency
Cisco brings recovery mechanisms such as flex links and Cisco Resilient Ethernet Protocol (REP) to the factory floor or other industrial site.
Manageability
The solution is easy for operations staff to configure and manage. Cisco Auto Smart Port lets you configure the right quality of service (QoS) settings for any port in seconds. It also allows for secure web-based administration and easy integration with your network management system.
Network address translation (NAT)
The switches provide line-rate, hardware-enabled static address translation to easily connect complex Layer‑2/machine node networks.
Industrial power-over-Ethernet (PoE)
Select switch models let you connect and power endpoints with a single cable in compliance with PoE and PoE+ standards.
| General | |
|---|---|
| Device type | Switch - 16 ports - Managed |
| Enclosure Type | Wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 16 x 10/100 (PoE+) + 2 x 10/100/1000 |
| Power over Ethernet (PoE) | PoE+ |
| Performance | Forwarding performance (64-byte packet size):6.5 Mpps |
| Capacity | IGMP groups:255 VLANs supported:1005 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | OSPF, RIP, BGP, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH |
| Authentication method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | NAT support, BOOTP support, ARP support, Cisco Fast EtherChannel, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), Precision Time Protocol (PTP), IGMP filtering, PROFINET v2 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2 |
| RAM | 256 MB |
| Flash memory | 64 MB |
| Expansion / Connectivity | |
| Interfaces | 16 x 100Base-TX M12 PoE+ 2 x 1000Base-T M12 uplink 1 x console M12 |
| Expansion slots | 1 (total) / 1 (free) x SD Memory Card |
| Power | |
| Power Consumption Operational | 137 Watt |
| Miscellaneous | |
| MTBF | 374,052 hours |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, NEMA Type 4, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, EN 55011, IP67, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-31, IEC 60068-2-52, EN 50121-4, VCCI Class A, NEMA TS-2, EN 50121-3-2, EN 61326, CISPR 11 class A, EN 61000-4-10, IEC 61850-3, EN 60945, EN 55022 Class A, EN 50155 |
| Software / System Requirements | |
| Software included | Cisco IOS LAN Enhanced |
| Dimensions & Weight | |
| Width | 30.07 cm |
| Depth | 8.15 cm |
| Height | 24.17 cm |
| Weight | 3.3 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
